Shop APPLETON ELECTRIC

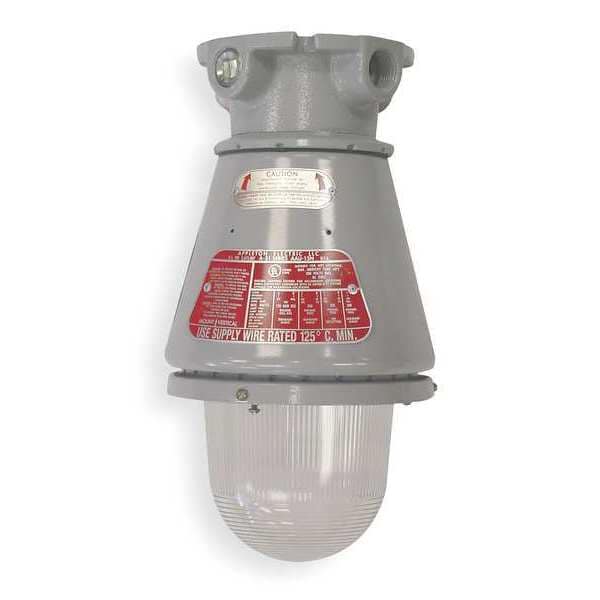

LightFix, Incand, 300W, 7"L, 7"W, 13 3/4"H

  • Mfr # AC1575

  • Zoro # G1805991

product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Standards
Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III, ULE10794, UL1598, UL 1598, UL 844, UL Listed E10444, CSA Standard C22.2 No. 250, C22.2 No. 137, CSA Certified 025428
Lighting Technology
Incandescent
Voltage
120V AC
Fixture Wattage
300
Length
7 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AC1575
Zoro #
G1805991
UPC #
-
Country of Origin
Mexico

Dimensions

Length
7 in
Width
7 in
Height
13-3/4 in
Height (In.)
13-3/4
Length (In.)
7
Width (In.)
7
Nominal Width
7 in
Nominal Length
7 in
Nominal Height
13 3/4 in
Overall Length
7 in
Overall Width
7 in
Overall Height
13 3/4 in
Nominal Size - Fixtures
1 ft x 1 ft
Wire Rope Length
7 in

Details

Item
Hazardous Location Lighting Fixtures
Standards
Class I, Div 1 and 2, Groups A, B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III, ULE10794, UL1598, UL 1598, UL 844, UL Listed E10444, CSA Standard C22.2 No. 250, C22.2 No. 137, CSA Certified 025428
Lighting Technology
Incandescent
Voltage
120V AC
Fixture Wattage
300
Mounting Bracket Item Number
2V740
Lamp Type
Incandescent
Bulb Designation
300M
Finish
Gray Epoxy Powder Coated
Fixture Type
Explosion Proof Incandescent Fixture
Suggested Lamp Item No.
4V625
Lamp Watts
300 W
Lamp Included
No
Lamp Quantity
1
Description/Special Features
For Chemical, Petro-chemical Plants, Refineries
Match Code
3
Fixture Item Number
2V738
Housing Finish
Epoxy Powder Coated
Mounting
Ceiling
Dimmable
No
Fixture Voltage
120V AC
Lamp Watts - Fixtures
300.0
Lamp Type - Fixtures
A23, PS25
Emergency Battery Backup
No
Max. Fixture Wattage
300 W
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Linkable Up To
Unlinkable
Temperature Code
T3C
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III
For Max. Bulb Wattage
300 W
Mounting Location
Ceiling
CA Title 24 Compliant
No
BAA Compliant
Yes
For Bulb Type
Incandescent
For Bulb Shape
A23/PS25
Number of Bulbs
0
For Number of Bulbs
1
Color Temperature
Lamp Dependent
Series
A-51 Incandescent
Warranty
2ACC8
Lumen Selectable
Not Selectable
Hazardous Location Rating
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G
Mounting Style
Ceiling
Maximum Fixture Wattage
300 W
Dimming Method
No Dimming

Description

7 in, Lamp Dependent, Not Applicable, Not Applicable, Max. Fixture Wattage 300 W, Mounting Style Ceiling, For Bulb Type Incandescent, Dimmable No, A-51 Incandescent
