  9. Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 172 GPM
Shop All Diaphragm Pumps
Aro

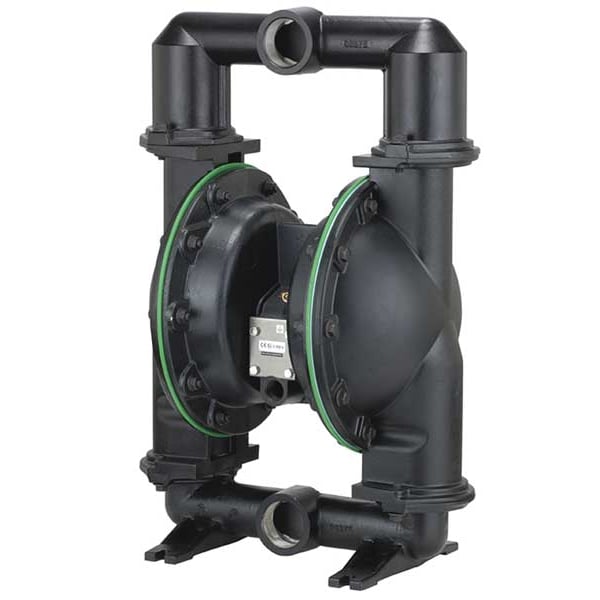

Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 172 GPM

original price: $2,578.48
9% off
new price: $2,321.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps Nitrile
  • Max. Flow 172 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 180 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 2 in
Air Inlet Size 3/4 in FNPT
Manufacturers Warranty Length 5 yr
Max. Dia. Solids 1/4 in
Overall Width 23.8 in
Overall Height 26.4 in
Overall Length 17.9 in
Media Discharge Connection Size 2 in
Air Intake Connection Size 3/4 in
Solid Diameter (Maximum) 0.25 in
Media Intake Connection Size 2 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps Nitrile
Max. Flow 172 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 180 Degrees F
Connection Style NPT
Agency Compliance ATEX, CE, REACH, RoHS
Check Seat Material Buna-N
Diaphragm Material Buna-N
Max. Flow GPM 172 gpm
Max. Temp. 180 Degrees F
Manifold Connection Single Port
Self-Priming Dry 27 ft
Body Material Aluminum
Self-Priming Wet 30 ft
Item Double Diaphragm Pump
Max. Operating Pressure 120 psi
Operation Type Air Operated
Ball Material Nitrile
Valve Type Ball
Standards ATEX Certified
Media Intake Location Center
Flow Rate @ 40 psi 130 gpm
Viscosity (Maximum) 50,000 cps
Feet of Head (Maximum) 289 ft
Pump Assembly Type Bolt
Flow Rate @ 120 psi 196 gpm
Operating Pressure (Maximum) 120 psi
Air Intake Pressure (Maximum) 120 psi
Media Temperature (Minimum) 10 Degrees F
Nameplate Voltage N
Media Discharge Connection Type NPTF
Media Discharge Location Center
Flow Rate (Maximum) 196 gpm
Priming Self-Priming
NPSHr 35 ft of head
Mounting Hardware Material Steel
Flow Rate @ 100 psi 178 gpm
Series 6662XX
Valve Material Buna-N
Air Consumption (Maximum) 140 scfm
Manifold Connection Type NPT
For Use With Potable Systems No
Chemical Compatibility Alcohol, Oil-Based Paint, Oils, Water
Media Intake Connection Type NPTF
Flow Rate @ 90 psi 175.8 gpm
Wetted Housing Material Aluminum
Flow Rate @ 50 psi 148.5 gpm
Flow Rate @ 60 psi 159.6 gpm
Series Family Pro
Flow Rate @ 80 psi 172.5 gpm
Non-Wetted Housing Material Aluminum
Air Intake Connection Type NPT
Flow Rate @ 70 psi 167 gpm
Media Temperature (Maximum) 180 Degrees F

Description

Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Buna-N, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 196 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF, Media Intake Location Center
