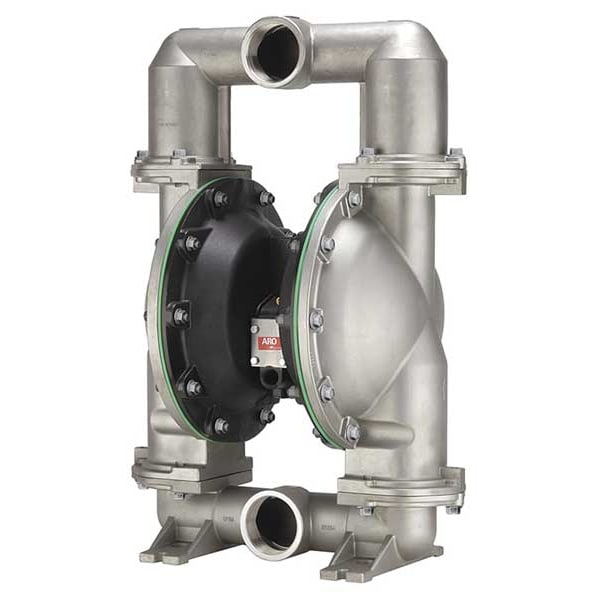

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 237 GPM

  • Mfr # 66630B-244-C

  • Zoro # G0572887

product price:  $13,732.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Size
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
66630B-244-C
Zoro #
G0572887
UPC #
-
Country of Origin
China

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Length
22.2 in
Overall Width
24.4 in
Overall Height
30 in
Media Intake Connection Size
3 in
Solid Diameter (Maximum)
0.38 in
Media Discharge Connection Size
3 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
225 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
10 psi
Pump Operation Type
Air
Self-Priming Wet
30 ft
Self-Priming Dry
17 1/2 ft
Agency Compliance
ATEX, CE, REACH, RoHS
Standards
ATEX Certified
Inlet/Outlet
3 in
Flow Rate (Maximum)
237 gpm
Media Intake Connection Type
NPT
Flow Rate @ 70 psi
0 gpm
Feet of Head (Maximum)
289 ft
Air Intake Pressure (Maximum)
10 psi
Series
6663XX
Media Discharge Connection Type
NPT
Series Family
Pro
Wetted Housing Material
316 Stainless Steel
For Use With Potable Systems
Yes
Flow Rate @ 40 psi
0 gpm
NPSHr
35 ft of head
Manifold Port Connection Type
Single Port
Material Conductivity
Conductive
Media Intake Location
Bottom
Fluid Chamber Assembly Type
Bolted
Diaphragm Base Material
PTFE
Diaphragm Reinforcement
Not Reinforced
Wetted Body Material
316 Stainless Steel
Center Section Material
Aluminum
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 237 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPTF, Media Intake Connection Size 3 in, Media Intake Connection Type NPTF, Media Temperature (Maximum) 225 Degrees F, Operating Pressure (Maximum) 10 psi
