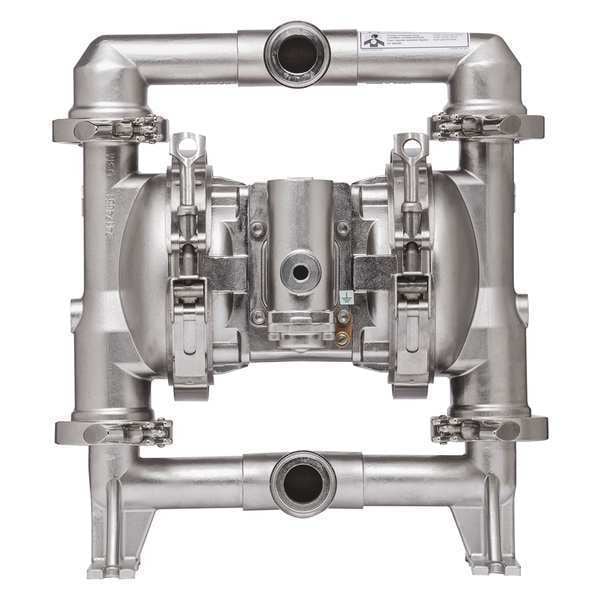

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene, 54 gpm GPM 225 Degrees F

  • Mfr # SD10S-CSS-SMM-B00

  • Zoro # G4312099


product price:  $5,062.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SD10S-CSS-SMM-B00
Zoro #
G4312099
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1 in FNPT
Manufacturers Warranty Length
5 yr
Overall Height
16 in
Overall Length
11 in
Overall Width
11 in
Solid Diameter (Maximum)
1/8 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene®
Valve Type
Ball
Air Intake Connection Type
Tri-Clamp
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
225 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
120 psi
Includes
Ball Valve
Pump Operation Type
Air
Self-Priming Dry
15 ft
Agency Compliance
ATEX, CE, REACH, RoHS, Sanitary (FDA Compliant)
Standards
1935/2004/EC, ATEX, CE, FDA CFR 21.177
Inlet/Outlet
1 in
Air Intake Pressure (Maximum)
120 psig
Media Intake Connection Type
Tri-Clamp
Media Discharge Connection Type
Tri-Clamp
Flow Rate (Maximum)
54 gpm
Series
SD
Series Family
SD10
Wetted Housing Material
316 Stainless Steel
Manifold Connection Type
Flange
Priming
Self-Priming
Feet of Head (Maximum)
31.4 ft
For Use With Potable Systems
Yes

Description

Double Diaphragm Pump, Air Intake Connection Size 1 in, Air Intake Connection Type Tri-Clamp, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 31.4 ft, Flow Rate (Maximum) 54 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp, Media Temperature (Maximum) 225 Degrees F
