Shop DELAVAN FLUID POWER

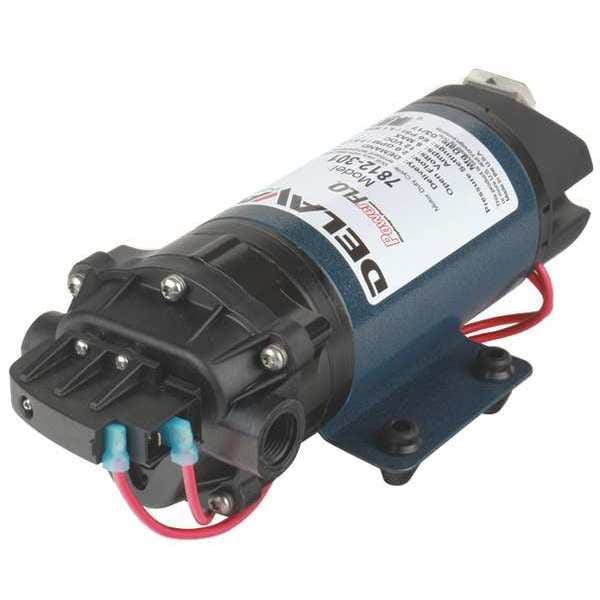

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 2.0 GPM

  • Mfr # 7812-301-SB

  • Zoro # G1593109

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
3/8 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7812-301-SB
Zoro #
G1593109
UPC #
830344009885
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in FNPT
Overall Height
3.5 in
Overall Length
8.5 in
Overall Width
4 in
Media Discharge Connection Size
3/8 in
Media Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in
Shaft Outer Diameter
8 mm
Discharge Diameter
3/8 in
Inlet Diameter
3/8 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Pressure On
20 psi
Agency Compliance
CE/NSF
Prime in Feet
8
Motor Type
Totally enclosed Nonventilated
Pressure Switch
Yes
Diaphragm Design
Three Chamber
Fuse Amps
7.5 A
Pressure Off
60 psi
Type
Diaphragm
Inlet/Outlet
3/8 FNPT
Pump Operation Type
Electric
Standards
NSF Certified
Flow Rate (Maximum)
2 gpm
Series
7800
Flow Rate @ 20 psi
1.6 gpm
Flow Rate @ 40 psi
1.5 gpm
Flow Rate @ 0 psi
1.7 gpm
Current
7.5 A
Diaphragm Chamber Design
3
Priming
Self-Priming
Nameplate Voltage
12V DC
Motor Enclosure
Totally Enclosed Non-Ventilated
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Check Valve Material
FKM
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Housing Material
Polypropylene
Pump Drive Configuration
Electric Motor Unit
Self-Priming Lift - Maximum
12 ft
Pressure Switch Off Pressure
60 psi
Media Temperature - Maximum
140 Degrees F
Electrical Connection Type
Two-Pin Molded Connector
Power Source
Electric
Includes Gearbox
No Gearbox Included
Feet of Head (Maximum)
138.4 ft
Fluid Head Material
Polypropylene
Includes Regulator
No Regulator Included
Chemical Compatibility
Fertilizer, Herbicide
Motor Speed - Maximum
2,200 RPM
Full Load Current
22.5
Pressure Switch On Pressure
50 psi
Discharge Pressure - Maximum
60 psi
Pump Control Type
Demand
Gasket Material
FKM
Phase
Single
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Includes Heat Sink
No Heat Sink Included
Number of Diaphragms
1
Pump Technology
Diaphragm
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 2 gpm, Housing Material Polypropylene, Intake Connection Size 3/8 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
