Ashcroft

Transducer, Pressure

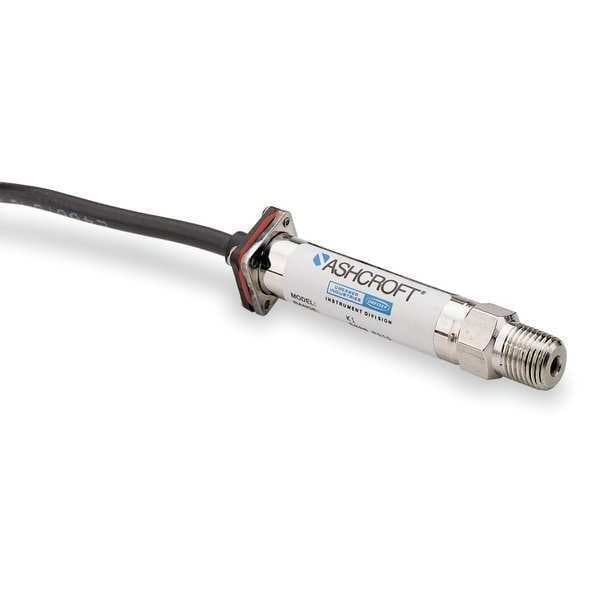

Ashcroft Transducer, Pressure K17M0242C1 15#
Hover or click to zoom Tap to zoom
$501.98
  • Range Units - Transmitter: psi
  • Item: Pressure Transmitter
  • Operating Temp. - Transmitter: -20 Degrees to 180 Degrees F
See full product details
This item ships free.

Total: $501.98

Ashcroft #K17M0242C1 15# Specifications

  • Range Units - Transmitter: psi
  • Item: Pressure Transmitter
  • Operating Temp. - Transmitter: -20 Degrees to 180 Degrees F
  • Range: 0 to 15 psi
  • Transmitter Type: Pressure Transmitter
  • Process Connection Type - Transmitter: MNPT
  • Process Connection: 1/4 in NPT
  • Lead Length (In.): 36
  • Compatible With: Any Process Compatible with Stainless Steel
  • Power Required - Transmitters: 10 to 36V DC
  • Wiring Entry - Transmitter: 1/2 in MNPT
  • Max. Pressure (PSI): 120 psi
  • Housing: Stainless Steel
  • Output: 4 to 20 mA DC
  • Electrical Connections: 1/2" NPT Male Conduit
  • Power Required: 10 to 36VDC
  • Includes: Instructions
  • Range Values - Transmitter: 0 to 15
  • Operating Temp.: -20 To 180 F
  • Output - Transmitter: 4 to 20mA DC
  • NEMA Rating: NEMA 4X
  • Accuracy - Transmitter: +/-1.00% Full Scale
  • Wetted Materials: 316 Stainless Steel
  • Manufacturers Warranty Length: 1 yr
  • Wetted Materials - Transmitters: 316 Stainless Steel
  • Accuracy: +/-1%
  • Process Connection Size - Transmitter: 1/4 in
  • Electrical Connections - Transmitter: 3 ft Cable
  • Thermal Error: +/-0.04%
  • Process Connection Type: NPT
  • Storage Temperature Range: -65 Degrees F to 250 Degrees F (-54 Degrees C to 121 Degrees C)
  • Standards: CRN
  • Minimum Pressure: 0 psi
  • Operating Temperature: -20 Degrees F to 180 Degrees F
  • Series: K1
  • Enclosure Rating: NEMA 4X
  • Response Time: 5 msec
  • Pressure Units: psi
  • Intrinsically Safe: No
  • Cable Length: 3 ft
  • Overpressure: 2x Range
  • Process Connection Gender: Male
  • Cable Material: PVC
  • Maximum Operating Temperature: 180 Degrees F
  • Burst Pressure: 8x Range
  • Minimum Operating Temperature: -20 Degrees F
  • Fitting Material: Stainless Steel
  • Maximum Pressure: 15 psi
  • Housing Material: Stainless Steel
  • Number of Wires: 2
  • Process Connection Size: 1/4 in
  • Pressure Range: 0 psi to 15 psi
  • (hidden) connection builder: Cable & Wire Leads x 1/2 in MNPT Conduit Connection
  • Electrical Connection: Cable & Wire Leads
  • Explosion/Fire Proof: No
  • Wiring Entry: 1/2 in MNPT Conduit Connection
  • Type of Pressure: Positive
  • Country of Origin (subject to change): United States

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 15 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 36V DC, NEMA Rating NEMA 4X, Series K1, Wiring Entry 1/2 in MNPT Conduit Connection, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -20 Degrees F
