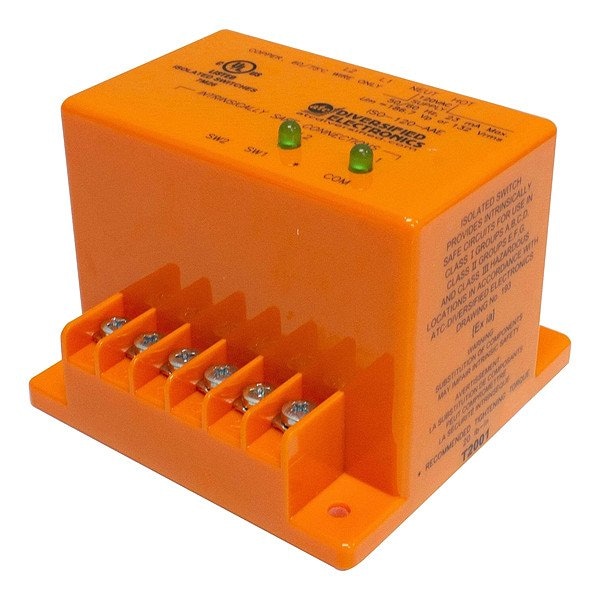

Safety Monitoring Relay, 3 in H, 120V AC
- Mfr # ISO120ACE
- Zoro # G016497969
product price:Â
$
604.99
/ea
Free Shipping & Returns
Key Features
Power Consumption
2.5 VA
Contact Form
SPST-NO
Input Voltage
120V AC
Series
ISO/ISL Series
Standards
UL 913
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ISO120ACE
- Zoro #
- G016497969
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Safety Monitoring Relay
- Power Consumption
- 2.5 VA
- Contact Form
- SPST-NO
- Input Voltage
- 120V AC
- Series
- ISO/ISL Series
- Standards
- UL 913
- Response Time
- 6 msec
- Mechanical Operating Durability
- 20,000,000
- Maximum Operating Temperature
- 131 Degrees F
- Weight
- 8 oz
- Contact Rating (AC)
- 5 A @ 24/120V AC (NO)
- Electrical Operating Durability
- 50,000
- Number of Inputs
- 4
- Number of Input Channels
- 4
- Minimum Operating Temperature
- -4 Degrees F
- Electrical Connection
- Screw Terminal
- Frequency
- 50/60 Hz
Description
Safety Monitoring Relay, Contact Form SPST-NO, Electrical Connection Screw Terminal, Input Voltage 120V AC, Number of Inputs 4, Response Time 6 msec, Standards UL 913, Contact Rating (AC) 5 A @ 24/120V AC (NO), Number of Input Channels 4, Body Depth 3.25 in, Body Height 3 in, Body Width 4 in, Electrical Operating Durability 50,000, Frequency 50/60 Hz, Maximum Operating Temperature 131 Degrees F, Mechanical Operating Durability 20,000,000, Minimum Operating Temperature -4 Degrees F
