Shop BALDOR-RELIANCE

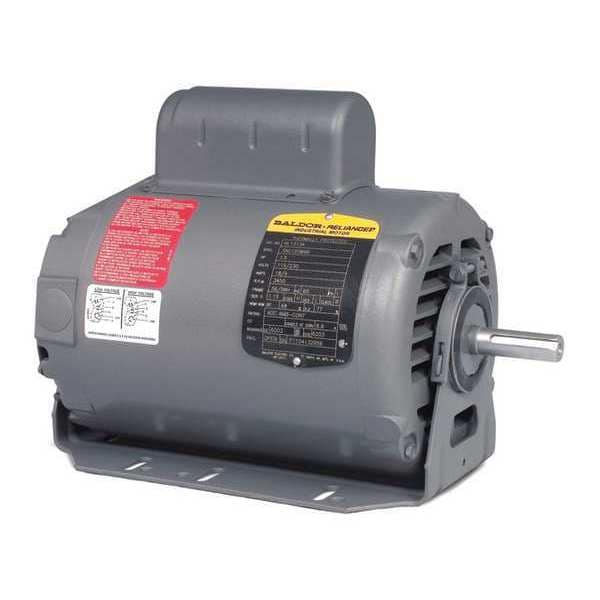

Direct Drive Blower Motor, 3/4 hp

  • Mfr # RL1307A

  • Zoro # G8052908

product price:
$
686.99
/ea
Free Shipping & Returns

Key Features

Frame
56
HP
0.75 HP
Motor Application
OEM Replacement
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RL1307A
Zoro #
G8052908
UPC #
781568120705
Country of Origin
United States
Frame
56
HP
0.75 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient
Motor Shaft Rotation
Reversible
Motor Sub Application
Fan and Blower Motors
Motor Thermal Protection
Automatic
Nameplate RPM
1725 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Baldor
Phase
1
RPM Range
1,701-1,800
Voltage
115/230V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
5.1A
Standards
CSA, UR
Motor Shaft Design
Standard
Hz
60 Hz
Motor Service Factor
1.25
Application
Fan and Blowers
Voltage Compatibility
115V AC, 230V AC
Nominal Efficiency
68 %
Capacitor Required
Capacitor Included
Bearing Type
Ball
Drive Type
Direct Drive
Full Load Current @ 60 Hz
5.1 A
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Sub Application
General Purpose
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.25
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Usable @ 208V
Not Usable at 208V
Product Type
Fan and Blower Motor
Insulation Class
B

Description

Direct Drive Blower Motor, Capacitor-Start Motor Design, Open Air-Over Motor Enclosure Design, 3/4 HP, 1,725 Nameplate RPM, Voltage 115/230V AC, 5.1 A Full Load Amps, 60 Hz Hz, Single Phase, 56 Frame, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 1, Motor Mounting Type Resilient Base, Motor Bearings Ball, Motor Thermal Protection Auto, Motor Shaft Rotation CCW, Length Less Shaft 11 1/16 in, Overall Length 12 15/16 in, Shaft Dia. 5/8 in
