Shop BALDOR-RELIANCE

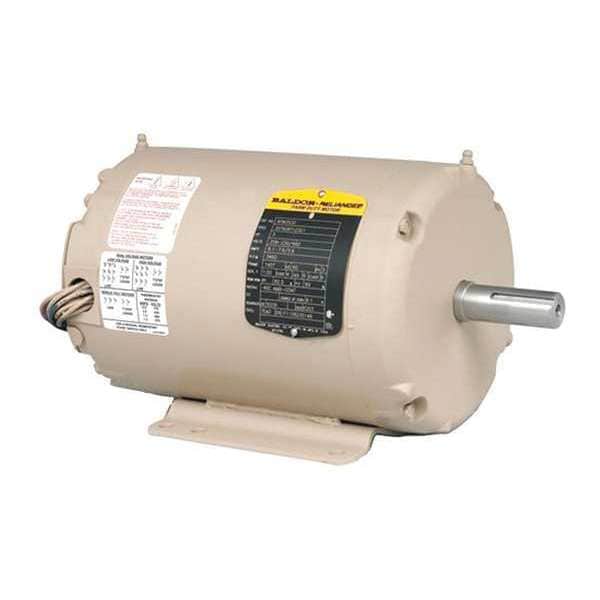

Fan Motor, 145T, 3 hp

  • Mfr # AFM3532

  • Zoro # G8051779

product price:  $823.99
/ea
Free Shipping & Returns

Key Features

Frame
145T
HP
3 HP
Motor Application
HVAC/R
Motor Design
Three-Phase
Motor Enclosure Design
Dust-tight Cover
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AFM3532
Zoro #
G8051779
UPC #
781568121382
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Length Less Shaft
10 1/2 in
Body Dia.
6.6 in
Overall Length
12.74"
Wire Rope Length
12 3/4 in

Details

Frame
145T
HP
3 HP
Item
Motor
Motor Application
HVAC/R
Motor Design
Three-Phase
Motor Enclosure Design
Dust-tight Cover
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Aeration Fans for Grain Storage, Exhaust Fans and Air Handling Systems
Motor Thermal Protection
None
Nameplate RPM
3,450
No. of Speeds
1
Number of Shafts
1
Phase
3
RPM Range
3450
Voltage
208-230/460 VAC
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 C
Duty
Farm Duty
Full Load Amps
3.8 A
Capacitor Required
No
Standards
NEMA
Motor Shaft Design
Pulley End
Hz
60 Hz
Motor Service Factor
1
Application
Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Conduit Box Position
F1
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Nominal Efficiency
82.5 %

Description

Three Phase, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.8, 145T Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
