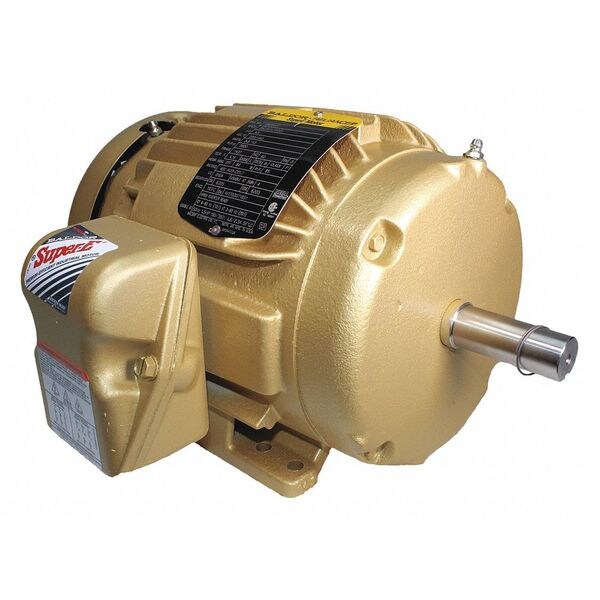

Three-Phase General Purpose Motor, 1 1/2 HP, 143T Frame, 208-230/460V AC Voltage
Mfr # EM3583T
Zoro # G7847341
product price: $1,165.99
/ea
Free Shipping & Returns
Key Features
HP
1 1/2
Nameplate RPM
3500 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.8/1.9 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EM3583T
Zoro #
G7847341
UPC #
781568204771
Country of Origin
United States
Dimensions
Length Less Shaft
10 1/4 in
Overall Length
12 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3500 rpm, Frame 143T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.8/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600
