Shop BALDOR-RELIANCE

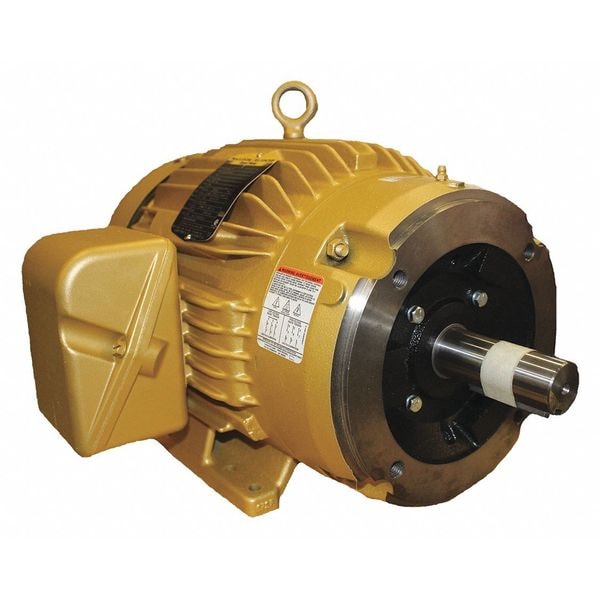

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM

  • Mfr # CEM3771T
  • Zoro # G9823317
product price:
$
2,493.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
3490 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
23.6/11.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3771T
Zoro #
G9823317
UPC #
781568134382
Country of Origin
United States

Dimensions

Length Less Shaft
16 1/16 in
Overall Length
19 3/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/16 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 3/8 in
Frame Size
215TC
Wire Rope Length
19 3/16 in
Length
19 3/16 in

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
3490 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
C-Face
Full Load Amps
23.6/11.8 A
Frame
215TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Motor Thermal Protection
None
Footnotes
1,30
Inverter Rated
Yes
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Duty Cycle
Continuous
Weight
197 lb
Capacitor Required
No
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Full Load Current @ 60 Hz
23.6/11.8 A
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Inverter Rating
Inverter Rated
Shaft Design
Keyed
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Product Type
General Purpose Motor
Manufacturers Warranty
3 yr
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,470/1,475/1,477/1,455/1,460/1,465 RPM
Application
General Purpose
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3490 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
