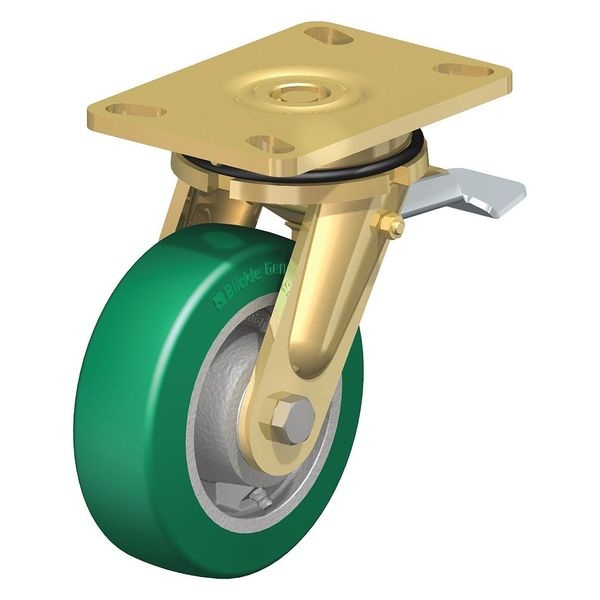

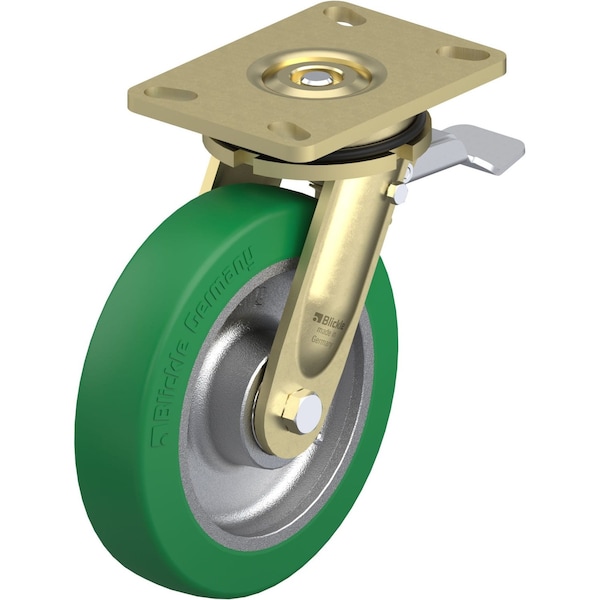

Blickle Swivel Plate Caster, PU, 8", Brake, Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer LS-GST 200K-16-ST - main

Swivel Plate Caster, PU, 8", Brake, Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer

  • Mfr # LS-GST 200K-16-ST

  • Zoro # G0895559

product price:  $312.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Overall Height
9.65in
Stem Dia.
No Stem
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GST 200K-16-ST
Zoro #
G0895559
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9.65in
Stem Dia.
No Stem
Wheel Width
2in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Number of Wheels
1
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1760 lb.
Item
Swivel Caster With Brake
Caster Brake Included
Yes
System of Measurement
Inch
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Standards
RoHS, ICWM
Core Color
Gray
Includes
Stop-Top Total-Lock Brake
Tread Color
Green
Frame Finish
Zinc Plated, Yellow Passivated
Caster Brake Type
Stop Top Brake (Total Lock)
Replacement Wheel
Mfr. No. GST 200/20K
Tread
Standard
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Caster Frame Material
Steel
Tread Shape
Standard
Wheel Core Material
Cast Iron
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1760 lb
ESD Conductive
No
Accessories
Optional: RI-LS-16 (Directional Lock)
Series
LS Series
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
