  11. Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 5/16 in Stud, Copper

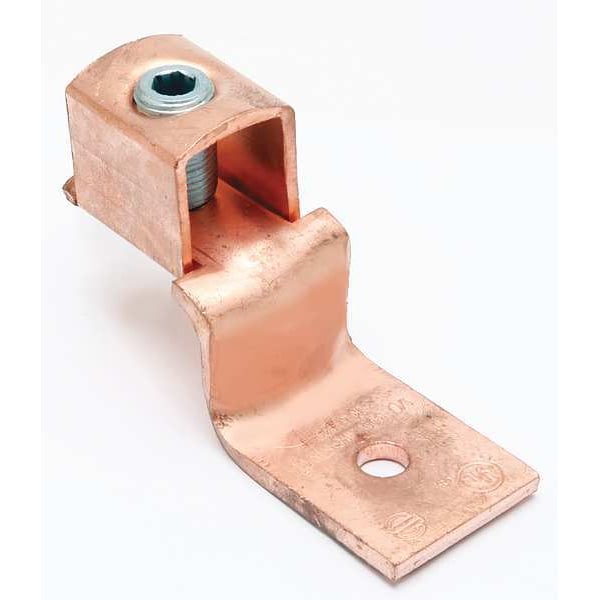

Burndy Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 5/16 in Stud, Copper KLU225 - main

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 5/16 in Stud, Copper

  • Mfr # KLU225

  • Zoro # G4694191

product price: $15.85
/ea

Key Features

No. of Conductors
1
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Number of Holes
1
Stud Size
5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KLU225
Zoro #
G4694191
UPC #
781810554234
Country of Origin
India

Dimensions

Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Stud Size
5/16 in
Length
2.56 in
Width
1.02 in
Length (Straight Wireway)
2.56 in
Strip Length
1 5/16 in
Tongue Width
1 in
Hole Diameter
0.34 in
Tongue Thickness
0.12 in
For Stranded Copper Wire Size - Minimum
2 AWG
For Stud Size
5/16 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Overall Depth
1 in
Overall Width
1.02 in
Overall Length
2.55 in
Conductor Size
2-4/0 AWG
Conductor - Copper Str Size Range
2 AWG-4/0 AWG
Dimension - Length Overall inch
2.55 in
Dimension - L Length Overall mm
65 mm
Dimension - Strip Length inch
42374
Dimension - Hole Size inch
0.34 in
Dimension - N inch
0.51 in
Dimension - B Length inch
0.94 in
Dimension - B Length fraction
15/16 in
Dimension - Pad Width inch
0.99 in
Dimension - Bolt Size fraction
2023-05-16
Conductor - Copper Str Size
2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Hole Size mm
9 mm
Dimension - Screw Size inch
45123
Dimension - Stud Size inch
45062
For Minimum Wire Size
2 AWG
For Maximum Wire Size
4/0 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
1
Material
Copper
Standards
cULus Listed, UL Listed
Body Material
Copper
Head Style
Hex
Maximum Operating Temperature
194 Degrees F
For Conductor Material
Copper
Number of Terminations
1
Special Features
Easy Installation, Long Lasting Reliable Contact
Number of Conductors
1
Contact Finish
Unplated
Torque
120 in-lb
Color
Bare
Compatible with Product Type
Copper Cable
Maximum Voltage
600 V
Type
Bolted Lugs & Terminals
Certification - UL Listed Direct Burial
No
Certification - cULus
Yes
Conductor Type
CU C Str-Size
UL Listed
No
Certification - CSA Approved
No
Hardware Type
7/16 UNF Socket/HexScrew
Plated
N
Physical Attribute - Number of Holes
1
Physical Attribute - Number of Screws
1
Physical Attribute - Screw Type
Allen
Industry Standard(s)
UL467
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar
Plating Type
Unplated
Trade Name
SCRULUGâ„¢
Installation Torque Recommended in-lb
120

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 5/16 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.34 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.12 in
