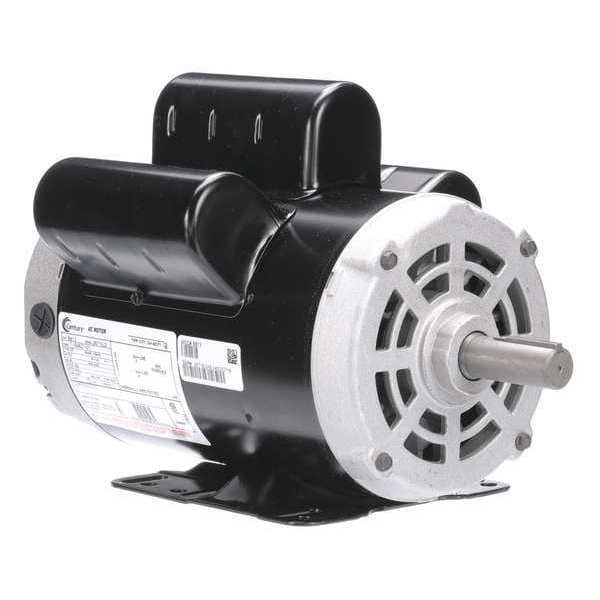

Air Compressor Motor, Capacitor-Start, 5 HP, 3,600 Nameplate RPM, 230V AC, Y56HZ Frame

The CENTURY - B813 is an Air Compressor Motor, a crucial component in the power transmission and pneumatics industry. This device transforms electrical energy into mechanical energy to drive the operation of an air compressor. The air compressor is used for pressurizing and storing air, which can be utilized across various industrial applications such as powering pneumatic tools or HVAC control systems.
Key features of this product include:
• Phase: Single-phase power supply suitable for residential or light commercial use.
• Motor Design: Capacitor-start electric motor influencing efficiency and starting torque.
• HP (Horsepower): 5 Horsepower (HP) indicating capacity to drive pneumatic tools and inflate air tanks quickly.
• Nameplate RPM: 3600, specifying maximum operational speed.
• Required Voltage for Optimal Operation: 230V AC.
• Full Load Amps: Maximum current drawn at full capacity is 22.0 A.
• Frame Size/Configuration: Y56HZ compatible with various types of compressors.
• Thermal Protection Feature: Manual resettable thermal protection feature.
• Maximum Ambient Temperature: Can function optimally up to temperatures of 40 Degrees C.
• Duty Cycle: Continuous operation without overheating for high-demand settings.
• Motor Bearings Type: Ball bearings enhancing operational efficiency.
• Motor Shaft Rotation: CCWSE, defining the direction of motor shaft spin.
• Nominal Efficiency: 83% filtration efficiency.
• Mounting Position: Horizontal orientation providing versatile usage options.
• Standards: CSA, UL Listed ensuring quality, safety, efficiency.
