Shop CENTURY

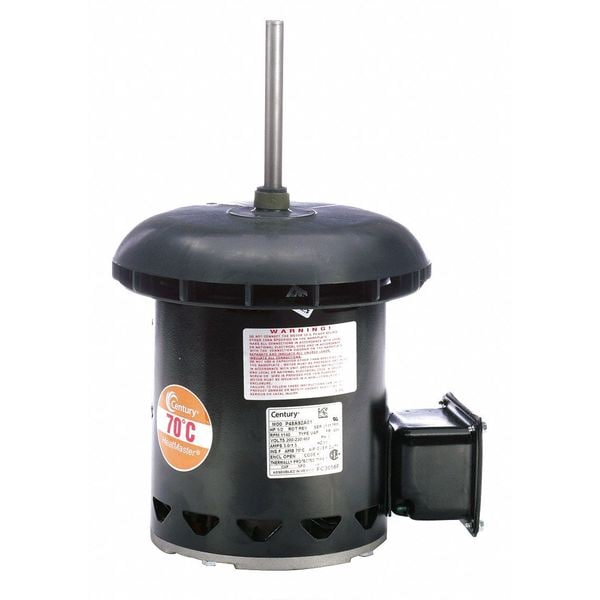

Condenser Fan Motor, 1/2 hp

  • Mfr # FC3056F
  • Zoro # G0586546
product price:
$
400.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FC3056F
Zoro #
G0586546
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 7/8 in
Length Less Shaft
8 13/16 in
Lead Length
5 in
Body Dia.
5 5/8 in
Overall Length
12 11/16 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
12 11/16 in
Length
12 11/16 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Hz
60 Hz
Motor Shaft Design
Flat
Ins. Class
F
Motor Service Factor
1
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Motor Bearings
Ball
Standards
CSA Certified, UL Recognized
Full Load Amps
3.0/1.5 A
Duty
Continuous
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Removable Base
Yes
Usable @ 200V
Usable at 200V
Output Watts
370 W
Weight
19 lb
Motor Frame Material
Steel
Conduit Box Position
F1
Mounting
Band
Bearing Type
Ball
Ambient Temperature - Maximum
70 Degrees C
Frequency
60 Hz
Frame Material
Steel
Product Type
Condenser Fan Motor
Shaft Design
Flat
Efficiency Rating
Standard Efficiency (IE1)
Wattage
370 W
Number of Speeds
1
Full Load Current @ 60 Hz
3.0/1.5 A
Sub Application
Condenser Fan
Application
Condenser Fan
Mounting Position
Vertical Shaft Up
Drive Type
Direct Drive
Includes
Rain Shield, Removable Base
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Insulation Class
F

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.0/1.5 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
