Shop CENTURY

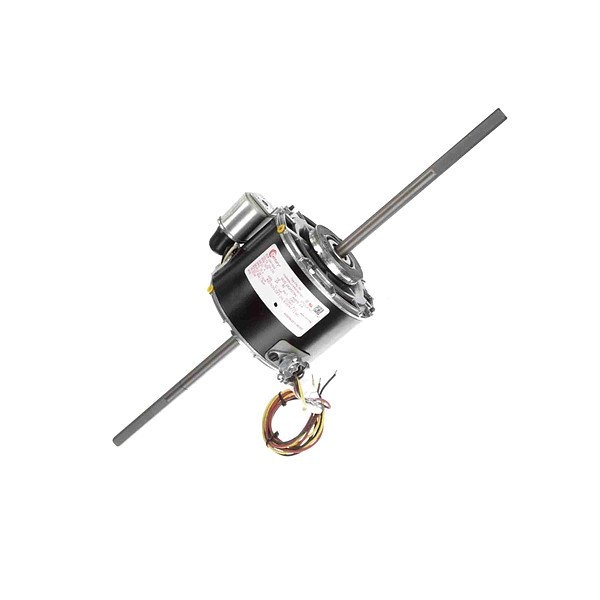

Direct Drive Blower Motor, 1/4 hp

  • Mfr # 747A

  • Zoro # G614235598

product price:  $179.99
/ea
Free Shipping & Returns

Key Features

Capacitor Required
Capacitor Included
Voltage
208-230V AC
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
747A
Zoro #
G614235598
UPC #
786674077424
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Overall Length
19 9/16 in
Lead Length
33 in
Length Less Shaft
3 25/32 in
Manufacturers Warranty Length
2 yr
Shaft Length
15 25/32 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
4 5/8 in
Bolt Circle Diameter
4 5/8 in
Body Diameter
5 in
Shaft Diameter
1/2 in
Frame Size
42

Details

Capacitor Required
Capacitor Included
Voltage
208-230V AC
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
Standards
CSA, UL
Voltage Compatibility
208-230V AC
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Motor Shaft Rotation
CCWLE
Duty Cycle
Continuous
No. of Speeds
2
Motor Mounting Type
Ring
Nameplate RPM
1,625
Full Load Amps
1.86 A
Motor Shaft Design
Keyed
Motor Service Factor
1
Ins. Class
B
RPM Range
1,601-1,700
HP
1/4
Phase
Single
Item
Direct Drive Blower Motor
Motor Mounting Position
Horizontal
Motor Sub Application
Direct Drive Fan/Blower
Motor Frame Material
Steel
Weight
10.13 lb
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Number of Shafts
2
Frame
42
Includes
Capacitor, Conduit Connector, Resilient Mounting Rings
Shaft Design
Keyed
Wattage
185 W
Drive Type
Direct Drive
Mounting Position
Horizontal
Product Type
Fan and Blower Motor
Insulation Class
B
Application
Fan/Blower
Number of Speeds
2
Frame Material
Steel
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Full Load Current @ 60 Hz
1.86 A
Manufacturers Warranty
2 yr
Duty
Continuous
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Usable @ 208V
Usable at 208V
Bearing Type
Ball

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 2, Voltage 208-230V AC, 1.86 A Full Load Amps, 42 Frame, Output Watts 185 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
