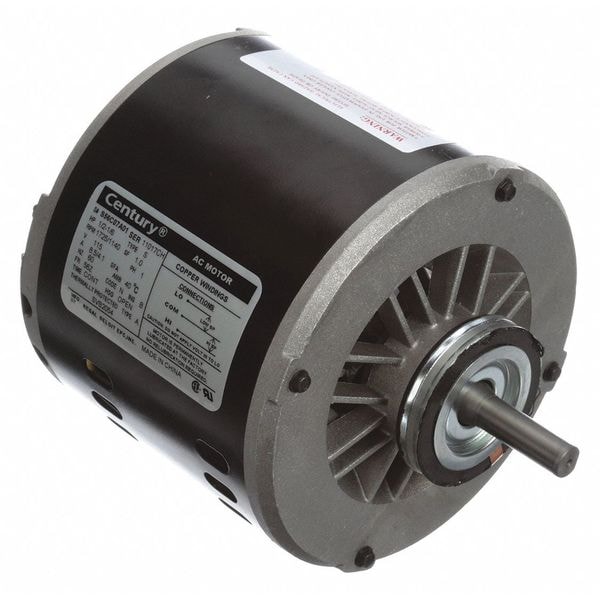

Evaporative Cooler Motor, 1/2 hp; 1/6 hp
Mfr # SVB2054V1
Zoro # G3415623
product price:Â
$
235.99
/ea
Free Shipping & Returns
Key Features
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2, 1/6
Full Load Amps
8.5/4.1 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SVB2054V1
- Zoro #
- G3415623
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Length
- 9 7/16 in
- Shaft Dia.
- 1/2 in
- Resilient Ring Dia.
- 2 1/2 in
- Shaft Length
- 1 1/2 in
- Length Less Shaft
- 7 15/16 in
- Ring Dia.
- 2 1/2 in
- Body Diameter
- 6.4 in
- Shaft Diameter
- 1/2 in
- Resilient Ring Diameter
- 2 1/2 in
- Frame Size
- 56Z
- Wire Rope Length
- 9 7/16 in
- Length
- 9 7/16 in
Description
Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 8.5/4.1 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
