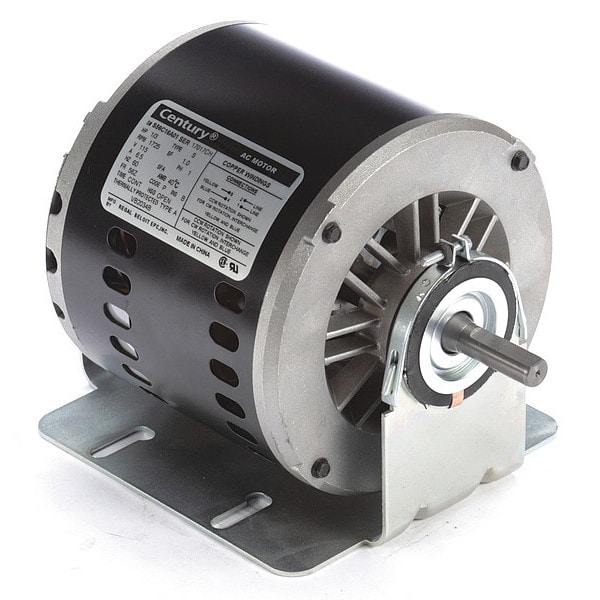

Evaporative Cooler Motor, 1/3 hp
Mfr # VB2034BV1
Zoro # G1622406
product price: $221.99
/ea
Free Shipping & Returns
Key Features
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3
Full Load Amps
6.5 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
VB2034BV1
Zoro #
G1622406
UPC #
-
Country of Origin
China
Dimensions
Overall Length
9 7/16 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Length Less Shaft
7 15/16 in
Ring Dia.
2 1/2 in
Resilient Ring Dia.
2 1/2 in
Description
Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 6.5 A Full Load Amps, 56Z Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
