Shop All Evaporative Cooler Motors
Century

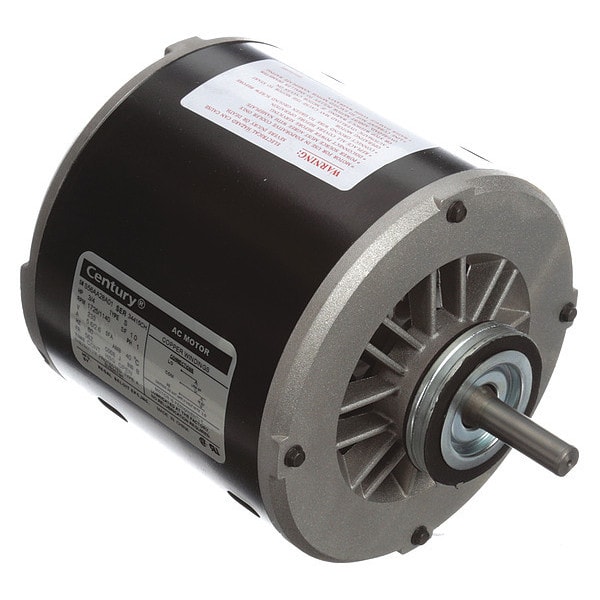

Evaporative Cooler Motor, 1-1/2 In. L

product price: $289.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Sub Application Evaporator Cooler
  • HP 3/4, 1/4
  • RPM Range 1,701-1,800
  • No. of Speeds 2
  • Phase Single
See all product information

Product Information

Dimensions

Ring Dia. 2 1/2 in
Shaft Length 1 1/2 in
Overall Length 9 7/16 in
Shaft Dia. 1/2 in
Resilient Ring Dia. 2 1/2 in
Length Less Shaft 7 15/16 in

Details

Motor Sub Application Evaporator Cooler
HP 3/4, 1/4
RPM Range 1,701-1,800
No. of Speeds 2
Phase Single
Voltage 230V AC
Motor Shaft Rotation CCWLE
Motor Design Split-Phase
Nameplate RPM 1,725/1,140
Frame 56Z
Motor Thermal Protection Auto
Item Evaporative Cooler Motor
Motor Mounting Type Ring
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Ins. Class B
Ring to Ring Center 7 7/16 in
Ambient Temperature 40 Degrees C
Motor Bearings Ball
Motor Application HVAC/R
Standards CSA, UL
Motor Enclosure Design Open Dripproof
Max. Ambient Temp. 40 Degrees C
Hz 60 Hz
Motor Service Factor 1
Full Load Amps 5.6/2.8 A
Features Moisture Resistant
Finish Varnish
Motor Mounting Position All Angle
Usable @ 200V No
Usable @ 208V No
Includes Hardware, Switch Parts

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 3/4, 1/4 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 230V AC, 5.6/2.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Ring, Motor Mounting Position All Angle, Shaft Length 1 1/2 in, Shaft Dia. 1/2 in
