  11. Mtr, PSC, 1/4 HP, 1550, 115/208-230V, 48Y, OAO

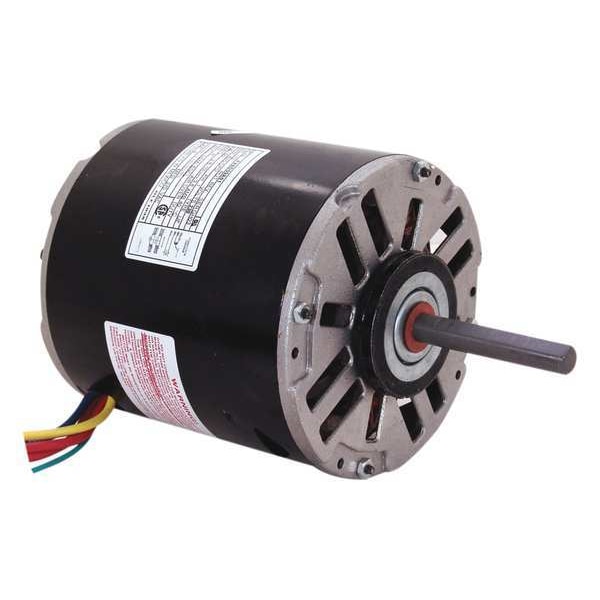

Century Mtr, PSC, 1/4 HP, 1550, 115/208-230V, 48Y, OAO 9700 - main

Mtr, PSC, 1/4 HP, 1550, 115/208-230V, 48Y, OAO

  • Mfr # 9700

  • Zoro # G1282382

product price: $218.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,550
Voltage
115/208-230V AC
Shaft Length
4 1/2 in
Ring to Ring Center
5 1/16 in
Motor Sub Application
Direct Drive Fan/Blower
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9700
Zoro #
G1282382
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
4 1/2 in
Length Less Shaft
5 1/2 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Overall Length
9 1/2 in
Lead Length
12 in

Details

Nameplate RPM
1,550
Voltage
115/208-230V AC
Ring to Ring Center
5 1/16 in
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
Motor Mounting Type
Ring
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Motor Shaft Rotation
CCWLE
HP
1/4
Application
Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Duty
Continuous
Standards
CSA Certified, UL Recognized
Ins. Class
B
Motor Bearings
Ball
No. of Speeds
1
Motor Design
Permanent Split Capacitor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Item
Direct Drive Blower Motor
Motor Enclosure Design
Open Air-Over
Full Load Amps
4.9/2.5/2.5 A
Frame
48Y
Motor Application
HVAC/R
Includes
Resilient Mounting Ring
Motor Mounting Position
Horizontal
Hz
60 Hz
RPM Range
1,501-1,600
Phase
Single
Capacitor Required
2MDV3
Motor Service Factor
1
Usable @ 208V
Yes
Number of Shafts
1
Motor Frame Material
Steel
Weight
13 lb
Mounting Holes
4
Usable @ 200V
No
Stud Quantity
4
Mounting
Ring
Number of Speeds
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.9/2.5/2.5 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
