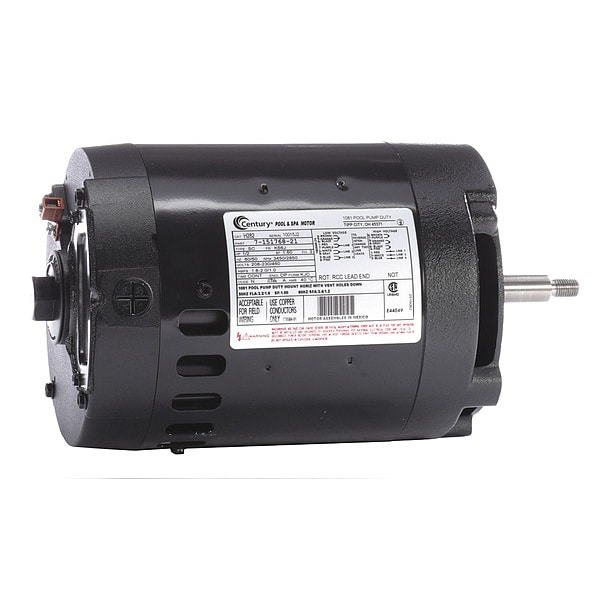

Pool Pump Motor, 3-Phase, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # H282
  • Zoro # G0787888
product price:
$
397.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H282
Zoro #
G0787888
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Body Dia.
6.4 in
Height
6 1/2 in
Overall Length
12 1/16 in
Bolt Circle Dia.
5 15/16 in
Length Less Shaft
9 1/2 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 15/16 in
Frame Size
56J
Body Diameter
6.4 in
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Item
Pool Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
RPM Range
3,001-3,600
Motor Service Factor
1.6
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CW/CCW
Voltage
208V AC to 230V AC, 460V AC
Phase
Three
Motor Mounting Type
Face
Full Load Amps
2.00-1.80/1.00 A
Motor Bearings
Ball
Motor Application
Pump
Motor Sub Application
Pool and Spa Pump
Motor Thermal Protection
None
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Ins. Class
A
Shaft Material
Stainless Steel
Hz
50/60 Hz
Max. Ambient Temp.
40 Degrees C
Standards
CSA, UL
Motor Mounting Position
Horizontal
Voltage @ 50Hz
208-230/460
Motor Shaft Design
Threaded
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
No. of Speeds
1
RPM @ 50Hz
2,850
Full Load Amps @ 50Hz
2.0-1.80/1.00
Service Factor @ 50Hz
1.6
Duty Cycle
Continuous
Weight
22 lb
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1/2
Nameplate Horsepower @ 50 Hz
1/2 hp
Application
Pump
Sub Application
Pool and Spa Pump
Nameplate Service Factor @ 50 Hz
1.6
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
2,850 RPM
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Shaft Design
Threaded
Frequency
60/50 Hz
Number of Wires
9
Product Type
Pump Motor
Full Load Current @ 60 Hz
1.8-2.0/1.0 A
Mounting Position
Horizontal
Full Load Current @ 50 Hz
2.0-1.80/1.00 A
Nameplate Service Factor @ 60 Hz
1.6
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
208-230/460V AC
Number of Speeds
1
Insulation Class
A

Description

Pool Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 5 15/16 in, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 2.00-1.80/1.00, Full Load Amps @ 50Hz 2.0-1.80/1.00, Height 6 1/2 in, HP 1/2, HP @ 50Hz 1/2, Ins. Class A, Length Less Shaft 9 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: NY
