Shop CENTURY

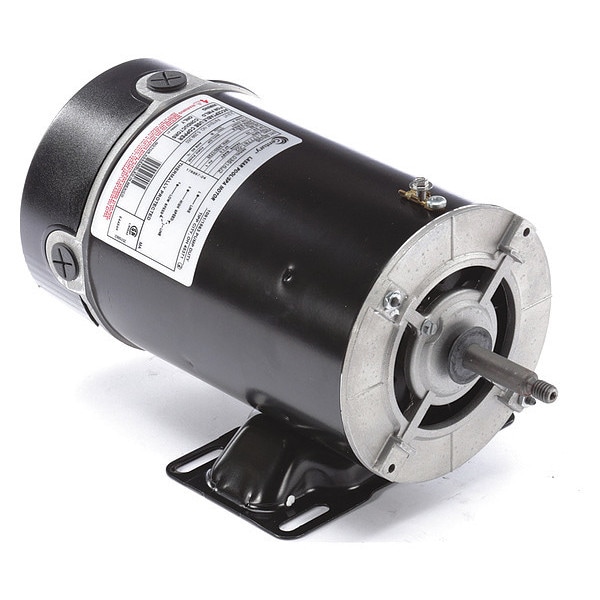

Pool Pump Motor, Split-Phase, 1/10, 3/4 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # BN36
  • Zoro # G0798743
product price:
$
276.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BN36
Zoro #
G0798743
UPC #
-
Country of Origin
Mexico
Item
Pool and Spa Pump Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/10, 3/4
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450/1,725
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115V AC
Full Load Amps
8.8/2.6 A
Motor Mounting Type
Hole
Standards
1563 Approvable, UL 1081
Ins. Class
B
Motor Application
Pump
Shaft Material
Steel
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Bearings
Ball
Motor Sub Application
Pool and Spa Pump
Shaft
Threaded 3/8-16 UNC-2A RH
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Finish
Black
Includes
12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle
Max. Ambient Temp.
40 Degrees C
No. of Speeds
2
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
23 lb
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Application
Pump
Number of Speeds
2
Shaft Type
Threaded 3/8-16 UNC-2A
Insulation Class
B
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Frequency
60 Hz
Frame Material
Steel
Sub Application
Pool and Spa Pump
Number of Wires
10
Full Load Current @ 60 Hz
8.8/2.6 A
Shaft Design
Threaded
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof

Description

Pool and Spa Pump Motor, Body Dia. 5.8 in, Bolt Circle Dia. 5 1/8 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 8.8/2.6, Height 9 1/2 in, HP 1/10, 3/4, Includes 12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle, Ins. Class B, Length Less Shaft 9 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof
