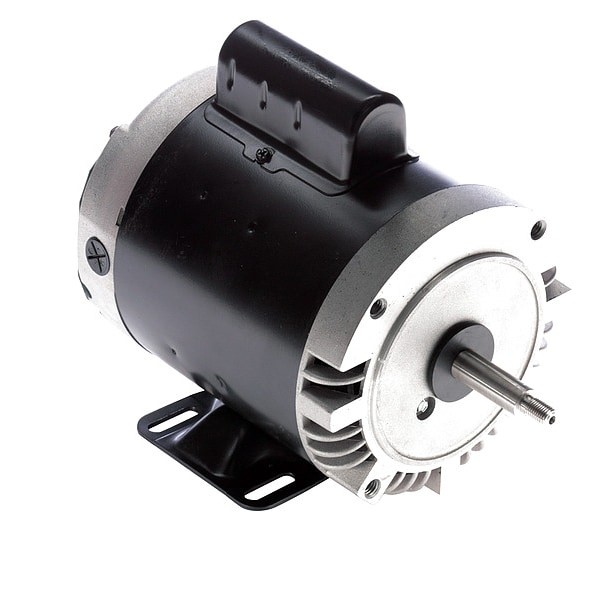

Century Pool Pump Motor, Capacitor-Start, 1/3 HP, 115/230V AC, 3,450 Nameplate RPM, K56J Frame B472 - main

Pool Pump Motor, Capacitor-Start, 1/3 HP, 115/230V AC, 3,450 Nameplate RPM, K56J Frame

  • Mfr # B472

  • Zoro # G0790697

product price:  $232.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1/3
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B472
Zoro #
G0790697
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/2 in
Overall Length
11 1/16 in
Shaft Dia.
5/8 in
Length Less Shaft
8 5/8 in
Body Dia.
6.5 in
Bolt Circle Dia.
3/8 in
Manufacturers Warranty Length
2 yr
Height
8 3/8 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
3/8 in
Frame Size
56J
Body Diameter
6.5 in

Details

Item
Pool Pump Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/3
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
K56J
Motor Service Factor
1.75
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Dripproof
Nameplate RPM
3,450
Motor Application
Pool and Spa Pump
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose Pump
Motor Shaft Design
Threaded
Motor Shaft Rotation
CW
Standards
CSA, UL
Full Load Amps
4.9/3.45 A
Motor Bearings
Ball
Voltage Compatibility
115V AC, 230V AC
Ins. Class
B
Hz
50/60 Hz
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Weight
18 lb
HP @ 50Hz
1/3
Usable @ 208V
Usable at 208V
Service Factor @ 50Hz
1.75
RPM @ 50Hz
3,450
Voltage @ 50Hz
115/230V AC
Full Load Amps @ 50Hz
8.6/4.3 A
Usable @ 200V
Usable at 200V
Duty Cycle
Continuous
Max. SF Amps
8.6/4.3 A
Conduit Box Location
Interior
Inverter Rated
Not Inverter Rated
Regreasable Bearings
Permanently Lubricated Bearings
Mounting Position
Horizontal
Nameplate Voltage @ 50 Hz
115/230V AC
Insulation Class
B
Full Load Current @ 50 Hz
8.6/4.3 A
Shaft Design
Threaded
Frequency
60/50 Hz
Number of Wires
10
Product Type
Pump Motor
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.75
Nameplate RPM @ 50 Hz
3,450 RPM
Frame Material
Steel
Number of Speeds
1
Manufacturers Warranty
2 yr
Nameplate Horsepower @ 50 Hz
1/3 hp
Motor Enclosure Type
Open Drip Proof
Application
Pump
Service Factor Current
8.6/4.3 A
Bearing Lubrication Type
Permanently Lubricated Bearings
Nameplate Service Factor @ 50 Hz
1.75
Bearing Type
Ball
Full Load Current @ 60 Hz
4.9/3.45 A

Description

Pool Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 3/8 in, Conduit Box Location Interior, Conduit Box Position Not Applicable, Duty Cycle Continuous, Frame K56J, Hz 50/60 Hz, Full Load Amps 4.9/3.45 A, Full Load Amps @ 50Hz 8.6/4.3 A, Height 8 3/8 in, HP 1/3, HP @ 50Hz 1/3, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating Not Applicable, Length Less Shaft 8 5/8 in, Manufacturers Warranty Length 2 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 8.6/4.3 A
