Shop U.S. MOTORS

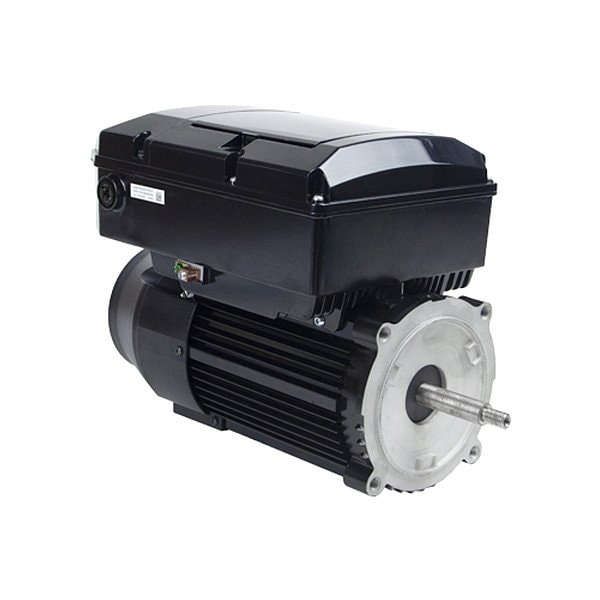

Pool and Spa Pump Motor, Flange, 56J

  • Mfr # M055UFH0227013J

  • Zoro # G416601706

product price:  $729.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
2.7
Nameplate RPM
3,450
Frame
56J
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M055UFH0227013J
Zoro #
G416601706
UPC #
786382135072
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 5/8 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
6.5 in

Details

Item
Variable Speed Pool Pump Motor
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
2.7
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Voltage
230V AC
Phase
Single
Full Load Amps
11.1 A
Motor Mounting Type
Flange
Motor Sub Application
Pool and Spa Pump
Weight
32 lb
Ins. Class
F
Hz
60/50 Hz
Max. Ambient Temp.
50 Degrees C
Standards
UL (E255002)
Motor Thermal Protection
Auto
Motor Frame Material
Steel
Motor Application
Pump
Inverter Rated
Inverter Rated
Motor Mounting Position
Horizontal
Includes Low Temperature Monitor
Low Temperature Monitor Included
User Interface Type
Back Lit
Frequency
60/50 Hz
Efficiency Rating
Standard Efficiency (IE1)
Sub Application
Pool and Spa Pump
Control Connector Configuration
4-Pin
External Control Type
Modbus & Low Voltage Connection to Pool Control Systems
Nameplate Service Factor @ 60 Hz
1
Product Type
Pump Motor
Bearing Type
Ball
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
11.1 A
Insulation Class
F
ECM Motor Type
Constant RPM
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled
Series
Neptune(R)
Application
Pump
Number of Daily Schedules
7
For Motor Replacement
Single-Speed Pump Motor
Frame Material
Steel
Includes User Interface
User Interface Included
Features
Adjustable Priming Time & Speed / Menu Keypad Lockout

Description

Variable Speed Pool Pump Motor, Frame 56J, Hz 60/50 Hz, Full Load Amps 11.1, HP 2.7, Ins. Class F, Inverter Rated Yes, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Design ECM, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA
