Shop CENTURY

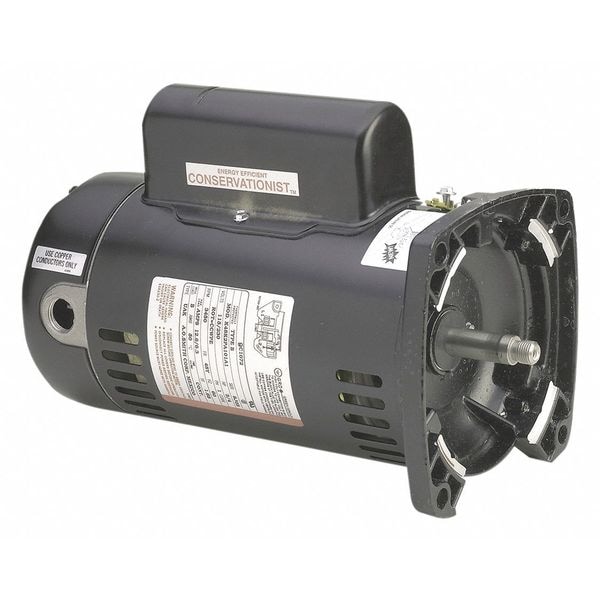

Pool Pump Motor, Capacitor-Start/Run, 3/4 HP, 48Y Frame, 3,450 Nameplate RPM

  • Mfr # QC1072
  • Zoro # G0887126
product price:
$
386.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.65
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
QC1072
Zoro #
G0887126
UPC #
-
Country of Origin
China
Item
Square Flange Pool Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.65
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
115V AC, 230V AC
Phase
Single
Full Load Amps
12.6/6.3 A
Motor Mounting Type
Face
Motor Efficiency Group
Energy Efficient
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Sub Application
Pool and Spa Pump
Max. Ambient Temp.
50 Degrees C
Ins. Class
B
Shaft
Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
Motor Application
Pump
Design
Two Compartment
Shaft Material
Stainless Steel
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Bearings
Ball
Standards
CSA, UL
Motor Shaft Design
Threaded
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Weight
25 lb
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Motor Frame Material
Steel
Shaft Design
Threaded
Application
Pump
Frame Material
Steel
Ambient Temperature - Maximum
50 Degrees C
Frequency
60 Hz
Bearing Type
Ball
Full Load Current @ 60 Hz
12.6/6.3 A
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.65
Number of Wires
11
Mounting Position
Horizontal
Sub Application
Pool and Spa Pump
Insulation Class
B

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Overall Length
11 15/16 in
Body Dia.
5.6 in
Height
5 5/8 in
Length Less Shaft
11 1/16 in
Shaft Dia. (In.)
5/8
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Frame Size
48Y
Wire Rope Length
11 15/16 in
Length
11 15/16 in

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 12.6/6.3, Height 5 5/8 in, HP 3/4, Ins. Class B, Length Less Shaft 11 1/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
