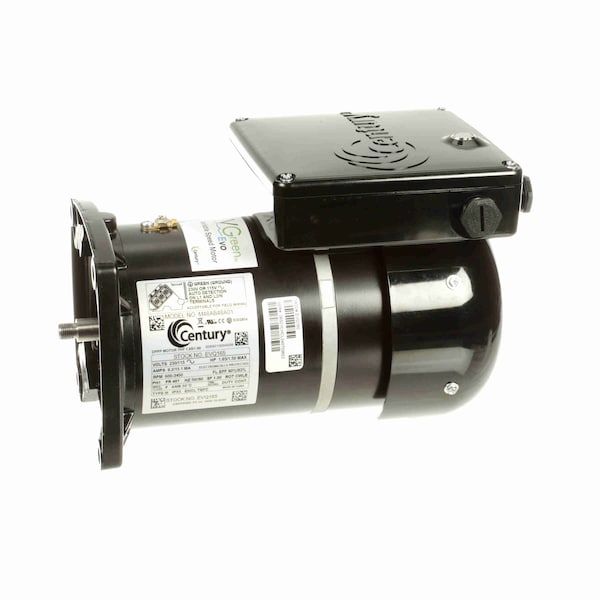

Pool Pump Motor, ECM, 1.30 HP, 48Y Frame, 600/3,450 Nameplate RPM

  • Mfr # EVQ130
  • Zoro # G410374934
product price:
$
560.99
/ea
Free Shipping & Returns

Key Features

Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1.30
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVQ130
Zoro #
G410374934
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Height
8 1/16 in
Overall Length
12 9/16 in
Length Less Shaft
11 13/16 in
Body Dia.
6.5 in
Bolt Circle Dia.
7 1/8 in
Shaft Diameter
5/8 in
Frame Size
48Y
Bolt Circle Diameter
7 1/8 in
Body Diameter
6.5 in
Fits Chest Size
Automatic Voltage Detection , 50/60 Hz, Class F and TEFC

Details

Item
Pool Pump Motor
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1.30
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
600/3,450
Frame
48Y
Motor Shaft Rotation
CW
Voltage
115V AC, 230V AC
Phase
Single
Motor Mounting Type
Square Flange
Full Load Amps
8.6/15.6 A
Weight
21 lb
Motor Mounting Position
Horizontal
Inverter Rated
Not Inverter Rated
Voltage Compatibility
115V AC, 230V AC, 120V AC, 240V AC
Standards
CE, UL
NEMA Design
None
Motor Application
Pump
RPM @ 50Hz
600-3,450
No. of Speeds
1
Voltage @ 50Hz
115/230V AC
HP @ 50Hz
1.30/1.30
Shaft Material
Steel
Motor Bearings
Ball
Motor Sub Application
Pool Motor
Full Load Amps @ 50Hz
8.6/15.6
Motor Thermal Protection
Auto
Hz
50 Hz
Max. Ambient Temp.
122 Degrees F
Ins. Class
F
Duty Cycle
Continuous
Motor Frame Material
Steel
Nominal Efficiency
82 %
Motor Shaft Design
Threaded
Service Factor @ 50Hz
1
Finish
Satin
Part Winding Start Capable
Yes
Usable @ 208V
Usable at 208V
Stator Type
TEFC
Max. SF Amps
8.6/15.6
Bearing Protection
Water Slingers
Regreasable Bearings
Permanently Lubricated Bearings
Usable @ 200V
Not Usable at 200V
Series
VGreen Evo(R)
Nameplate RPM @ 50 Hz
600-3,450 RPM
Efficiency Rating
Standard Efficiency (IE1)
Bearing Protection Type
Water Slingers
Insulation Class
F
Product Type
Pump Motor
Bearing Type
Ball
Full Load Current @ 50 Hz
8.6/15.6
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 50 Hz
1
For Motor Replacement
Single-Speed Pump Motor
Sub Application
Pool and Spa Pump
Nameplate Voltage @ 50 Hz
115/230V AC
Full Load Current @ 60 Hz
8.6/15.6 A
Features
Automatic Voltage Detection , 50/60 Hz, Class F and TEFC
Number of Speeds
1
User Interface Type
Single Push Button
Frequency
60/50 Hz
Bearing Lubrication Type
Permanently Lubricated Bearings
Mounting Position
Horizontal
Shaft Design
Threaded
Nameplate Horsepower @ 50 Hz
1 3/10 hp
Includes User Interface
User Interface Included
Application
Pump
External Control Type
Compatible Automation Systems (Check Manual)
Service Factor Current
8.6/15.6
Number of Daily Schedules
16
Control Connector Configuration
4-Pin

Description

Pool Pump Motor, Flange, 48Y
