  9. Extended Die Grinder, 1/4 in Female Air Inlet, 1/4 in Collet, Medium Duty, 24,000 RPM, 0.54 hp
Shop All Air Grinders
Chicago Pneumatic

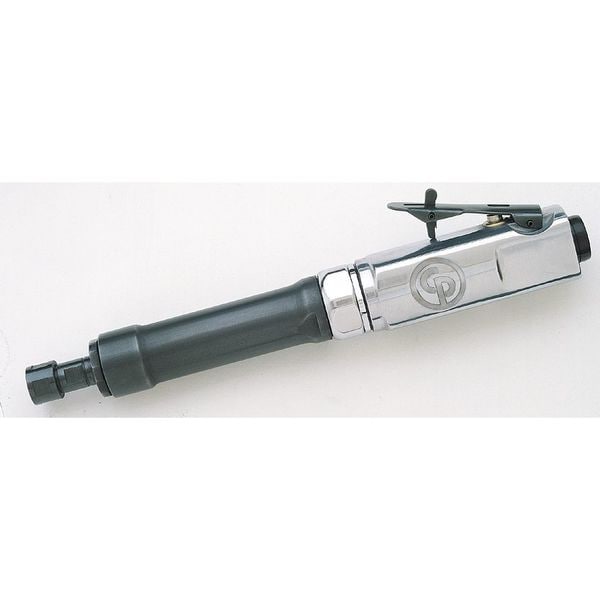

Extended Die Grinder, 1/4 in Female Air Inlet, 1/4 in Collet, Medium Duty, 24,000 RPM, 0.54 hp

Hover or click to zoom Tap to zoom
Key Features
  • Air Inlet: 1/4 in Female
  • Item: Die Grinder
  • Collet: 1/4 in
  • Duty: Medium Duty
  • Free Speed: 24,000 RPM
  • Grinder Type: Extended
  • Handle Material: Aluminum
  • HP: 0.54 hp
See full product details
$312.69
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Chicago Pneumatic #CP860ES Specifications

  • Air Inlet: 1/4 in Female
  • Item: Die Grinder
  • Collet: 1/4 in
  • Duty: Medium Duty
  • Free Speed: 24,000 RPM
  • Grinder Type: Extended
  • Handle Material: Aluminum
  • HP: 0.54 hp
  • Min. Hose Size: 3/8 in
  • Overall Length: 11 3/4 in
  • Required Pressure: 90 psi
  • Throttle: Safety Lever
  • Variable Speed: Yes
  • CFM @ Full Load: 23.0
  • Average CFM @ 15 Second Run Time: 11.5
  • Exhaust: Rear
  • Characteristics: Adjustable Speed Regulator, General High-Speed Polishing and Grinding, Lock-Off Throttle, Moldings, Porting, Relieving Engines, Square Handle Design, Use for Cleaning Tires
  • Bearing Type: Ball
  • Grinder Orientation: Extended
  • Tool Weight: 2.1 lb
  • Vibration Level: 3.7 m/sq sec
  • Switch Location: Top
  • Switch Type: Lock-Off
  • Horsepower: 0.5 hp
  • Max. Speed: 24,000 RPM
  • Application: For Cleaning Tires, Moldings, Porting, Relieving Engines, General High-Speed Polishing and Grinding
  • Kit Contents: (1) Bare Tool
  • Features: Durable
  • Safety Features: Lock-Off Lever
  • Air Pressure: 90 psi
  • Air Consumption: 23 cfm
  • Tool Style: Straight Extended
  • Collet Size: 1/4 in
  • Exhaust Location: Rear
  • Safety Stop Mechanisms: Not Applicable
  • Standards: ISO-28927-12
  • Power Source: Air Powered
  • Lock-Off Switch: Yes
  • Air Inlet Connection Size: 1/4 in
  • Minimum Speed: 24,000 RPM
  • Air Inlet Gender: Female
  • Country of Origin (subject to change): Japan

Description

Die Grinder, Duty Medium Duty, Horsepower 0.5 hp, Collet Size 1/4 in, Grinder Orientation Extended, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 24,000 RPM, Air Inlet 1/4 in Female, Tool Style Straight Extended, Kit Contents (1) Bare Tool, Safety Features Lock-Off Lever, Switch Location Top, Power Source Air Powered
