  6. Agricultural Fan Motor, 3-Phase, 1 HP, 460V AC, 850 Nameplate RPM, 56CZ Frame

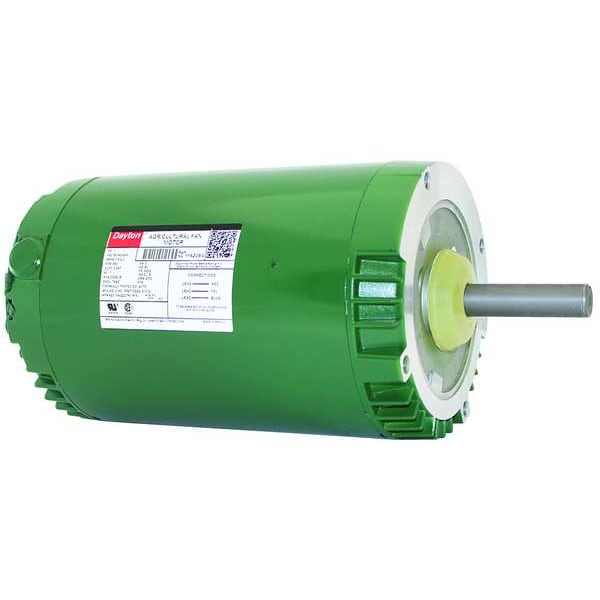

Dayton Agricultural Fan Motor, 3-Phase, 1 HP, 460V AC, 850 Nameplate RPM, 56CZ Frame 1YAZ2BG - main

Agricultural Fan Motor, 3-Phase, 1 HP, 460V AC, 850 Nameplate RPM, 56CZ Frame

  • Mfr # 1YAZ2BG

  • Zoro # G0700436

product price:  $880.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
0-1,000
Voltage
460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1YAZ2BG
Zoro #
G0700436
UPC #
190735150146
Country of Origin
Mexico

Dimensions

Shaft Length
3 1/4 in
Shaft Dia.
3/4 in
Overall Length
13 5/16 in
Length Less Shaft
10 1/16 in

Details

Item
Agricultural Fan Motor
Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
0-1,000
Voltage
460V AC
Frame
56CZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
850
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E47479)
Includes
Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover
Ins. Class
B
Frame Material
Rolled steel
Duty
Continuous Air Over
Finish
Green
Motor Bearings
Ball
Item - Farm Duty Motors
Agricultural Fan Motor
Nominal Efficiency
74 %
Hz
60 Hz
Full Load Amps
1.9-2.0 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Max. Ambient Temperature
40 Degrees C
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Application
Farm Duty
Replacement For
3XK38

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.9-2.0 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green, Shaft Dia. 3/4 in
