  6. Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

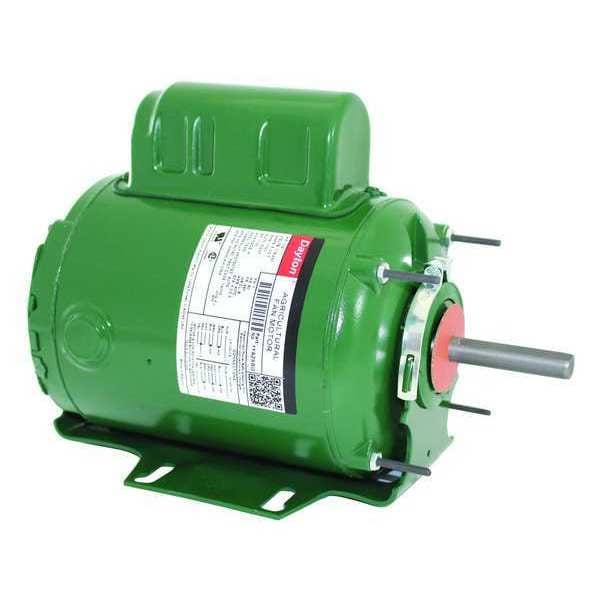

Dayton Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM 1YAZ6BG - main

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,700 Nameplate RPM

  • Mfr # 1YAZ6BG

  • Zoro # G2606685

product price:  $312.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
48YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YAZ6BG
Zoro #
G2606685
UPC #
190735150184
Country of Origin
Mexico

Dimensions

Overall Length
10 15/16 in
Shaft Dia.
1/2 in
Shaft Length
2 1/2 in
Length Less Shaft
8 7/16 in

Details

Item
Agricultural Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,601-1,700
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,700
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Hz
60 Hz
Motor Bearings
Ball
Full Load Amps
5.0/2.5 A
Duty
Continuous Air Over
Capacitor Required
Included
Max. Ambient Temperature
40 Degrees C
Includes
5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
Finish
Gray
Ins. Class
B
Frame Material
Rolled steel
Item - Farm Duty Motors
Agricultural Fan Motor
Nominal Efficiency
70.8 %
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Application
Farm Duty
Replacement For
4M253

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.0/2.5 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
