  5. Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

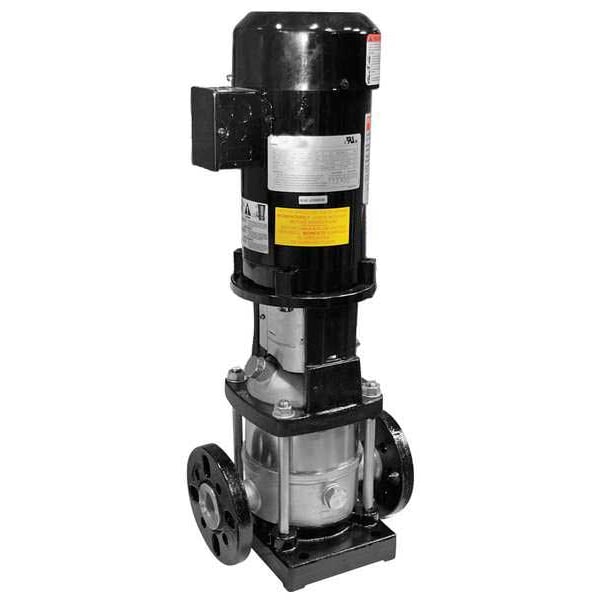

Dayton Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage 5UWL3 - main

Booster Pump, 1 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

  • Mfr # 5UWL3

  • Zoro # G1779976

product price:  $1,784.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWL3
Zoro #
G1779976
UPC #
190735352984
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Length
9 7/8 in
Max. Dia. Solids
5/64 in
Manufacturers Warranty Length
1 yr
Width
8 1/4 in
Height
24 2/3 in
Overall Width
8.25 in
Overall Length
9.88 in
Overall Height
24.66 in
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Discharge Flange Size
1 1/4 in
Intake Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/4 in

Details

Item
Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
5
Max. Pressure - Pumps
66 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Outlet
1-1/4" FNPT
Voltage
208-230/460
Impeller Material
Stainless Steel
Max. Pressure
66 psi
Hz
60
Pump Mounting Position
Horizontal
Max. Liquid Temp.
248 Degrees F
Duty
Continuous
Amps
3.3-3.2/1.6 A
Motor RPM
3,450 RPM
Housing Material
Stainless Steel
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Best Efficiency GPM @ PSI
16 @ 45
Suction Lift
0 ft
Agency Compliance
c UL us
Motor Type
3-Phase
GPM @ 40 PSI
17
Impeller Type
Closed
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Motor Ambient Temp. Rating
40 Degrees C
Includes
Manual
HP
1
Max. Case Pressure
245 psi
Phase
Three
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
Bearing Type
Ball
Stages
5
Frame
56c
Inlet
1-1/4" FNPT
GPM @ 60 PSI
6
Standards
cULus Listed
Intake Type
Flange
Case Pressure (Maximum)
245 psi
Duty Cycle
Continuous
Number of Stages
5
Maximum RPM
3,450 RPM
Flow Rate @ 60 psi
6 gpm
Maximum Media Temperature
248 Degrees F
Frequency
60 Hz
Flow Rate @ 50 psi
12 gpm
Flow Rate @ 40 psi
17 gpm
For Use With Potable Systems
No
Motor Ambient Temperature (Maximum)
104 Degrees F
Discharge Type
Flange
Nameplate Voltage
230/460V AC
Suction Lift (Maximum)
0 ft
Mounting Orientation
Vertical
Best Efficiency Pressure
45 psi
Compatible with Media Type
Non-Abrasive Liquids, Water
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Horsepower
1 hp
Impeller Design
Closed
Pump Housing Material
Stainless Steel
Motor Ambient Temperature (Minimum)
40 Degrees F
Motor Frame Designation
56C
Shut Off Pressure (Maximum)
66 psi
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Best Efficiency Flow
14 gpm
Installation
Floor Standing
Full Load Current
3.3-3.2/1.6 A
Case Pressure - Maximum
245 psi
Media Temperature - Maximum
248 Degrees F
Discharge Standard
Flange
Motor Ambient Temperature - Maximum
104 Degrees F
Revolutions Per Minute - Maximum
3,450 RPM
Inlet Standard
Flange
Pump Casing Material
Stainless Steel
Motor Enclosure Design
Totally Enclosed Fan Cooled
Power Source
Corded Electric
Inlet Gender
Female
Suction Lift - Maximum
0 ft
Media Temperature - Minimum
0 Degrees F
Shut Off Pressure - Maximum
66 psi
Motor Design
Three-Phase
Motor Ambient Temperature - Minimum
40 Degrees F

Description

Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 1 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 psi 17 gpm, Flow Rate @ 50 psi 12 gpm, Flow Rate @ 60 psi 6 gpm, Shut Off Pressure (Maximum) 66 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 3.3-3.2/1.6 A, Best Efficiency Pressure 45 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
