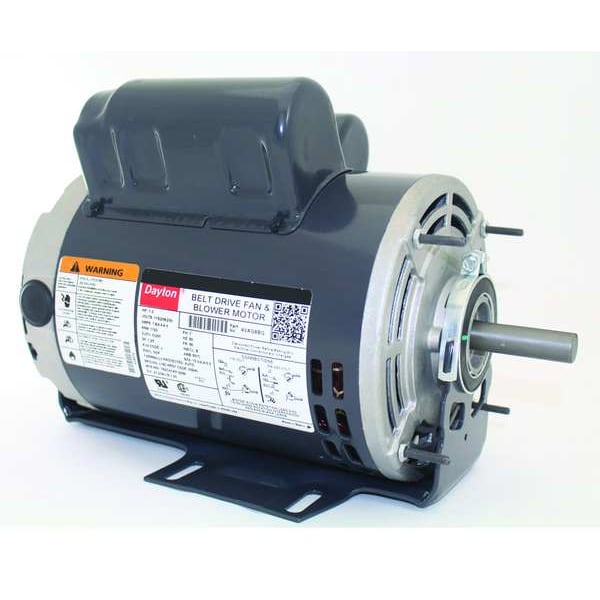

Dayton Capacitor-Start/Run Belt Drive Motor, 1 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM 4VAG8 - main

Capacitor-Start/Run Belt Drive Motor, 1 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 4VAG8

  • Zoro # G0386337

product price:  $441.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4VAG8
Zoro #
G0386337
UPC #
190735335819
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
12 3/8 in
Resilient Ring Dia.
2 1/4 in
Body Dia.
6 1/2 in
Length Less Shaft
10 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nominal Efficiency
83.3 %
Ins. Class
B
Max. Ambient Temp.
140 Degrees F
Duty
Continuous
Full Load Amps
7.8/4.4-4.0 A
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Rolled Steel
Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Footnotes
Usable On 208V At 1.0 Service Factor
Ring to Ring Center
9 15/16 in
Duty Cycle
Continuous

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 7.8/4.4-4.0 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
