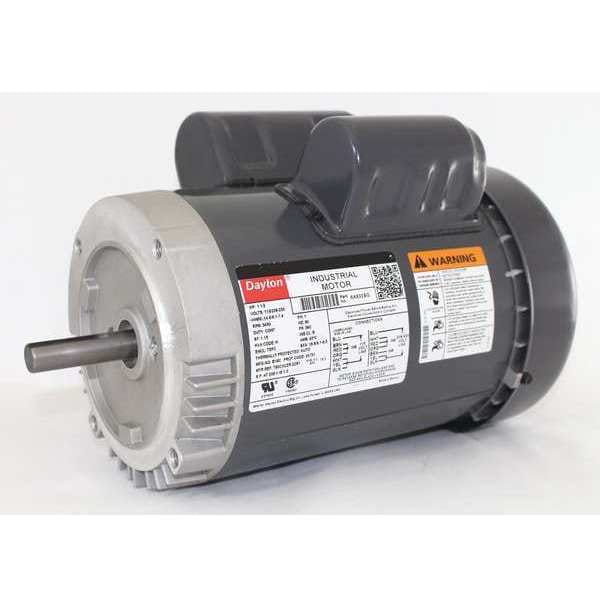

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame

  • Mfr # 6K832

  • Zoro # G1831907

product price:  $418.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K832
Zoro #
G1831907
UPC #
190735366547
Country of Origin
Mexico

Dimensions

Overall Length
12 15/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Length Less Shaft
10 11/16 in
Frame Size
56C
Wire Rope Length
12 15/16 in
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1 1/2 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Frame
56C
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
3,450 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Component Recognized (E37403)
Nominal Efficiency
78.5 %
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Energy Efficient
Full Load Amps
14.6/8.1-7.4 A
Phase
Single
Footnotes
24,51
Includes
Shaft Key
Frame Material
Steel
Ins. Class
B
Motor Bearings
Ball
RPM Group
3001-3600
Duty
Continuous
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Application
General Purpose
Frequency
60 Hz
Number of Speeds
1
Product Type
General Purpose Motor
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Insulation Class
B
Mounting Position
All Angle
Full Load Current @ 60 Hz
14.6/8.1-7.4 A
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
High Efficiency (IE2)
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
