Shop DAYTON

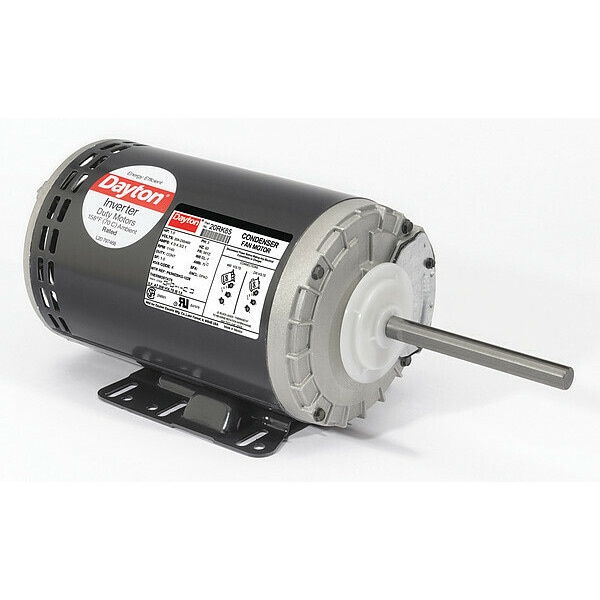

Condenser Fan Motor, 1 hp

  • Mfr # 20RK85

  • Zoro # G7455752

product price:
$
879.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20RK85
Zoro #
G7455752
UPC #
190735153970
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Nominal Efficiency
83.4 %
Duty
Continuous
Application
Commercial Air Conditioners
Motor Service Factor
1
Motor Shaft Design
Flat
Standards
CSA 191252, UL E47479
Features
Inverter Duty Windings
Ins. Class
F
Hz
60 Hz
Full Load Amps
4.3-4.3/2.1 A
Motor Bearings
Ball
Inverter Rated
Yes
Duty Cycle
Continuous
Bearing Protection
Shaft Grounding Rings
Mounting
Rigid Base
Motor Enclosure Type
Open Air Over
Inverter Rating
Inverter Rated
Insulation Class
F
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Vertical Shaft Up
Bearing Type
Ball
Ambient Temperature - Maximum
70 Degrees C
Shaft Design
Flat
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
4.3-4.3/2.1 A
Frequency
60 Hz
Number of Speeds
1

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.3-4.3/2.1 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
