Shop DAYTON

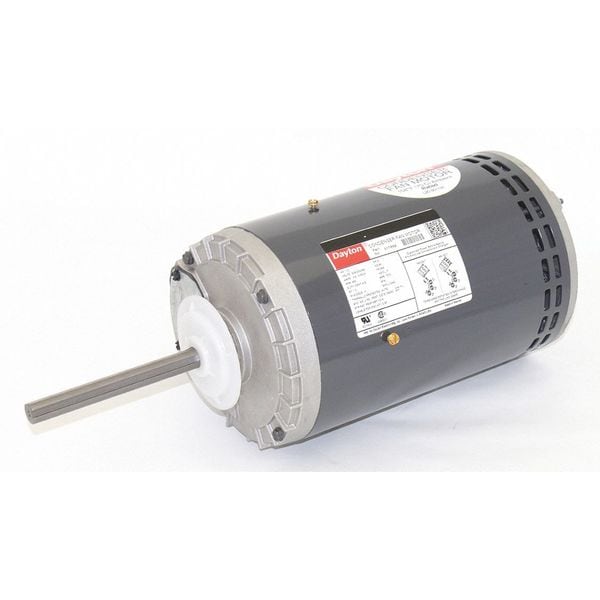

Condenser Fan Motor, 1 hp

  • Mfr # 31TR64

  • Zoro # G8571184

product price:
$
756.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31TR64
Zoro #
G8571184
UPC #
190735255704
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
6 in
Lead Length
6 in
Overall Length
16 3/4 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
6 1/2 in
Length Less Shaft
10 3/4 in
Stud Size
#10-32
Mounting Stud Thread Size
#10-32
Frame Size
56Z
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Wire Rope Length
16 3/4 in
Length
16 3/4 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Z
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings
Ball
Stud Quantity
4
Ins. Class
F
Features
Quick Disconnect Design
Standards
CSA 258525, UL E47479
Application
Condenser Fan
Motor Shaft Design
Flat
Hz
60 Hz
Nominal Efficiency
77.1 %
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Duty
Continuous
Full Load Amps
4.8-4.8/2.4 A
Motor Service Factor
1
Capacitor Required
Capacitor Not Required
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Band
Frequency
60 Hz
Mounting Position
Horizontal/Vertical Shaft Up
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Bearing Type
Ball
Full Load Current @ 60 Hz
4.8-4.8/2.4 A
Number of Speeds
1
Inverter Rating
Inverter Rated
Insulation Class
F
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.8-4.8/2.4 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
