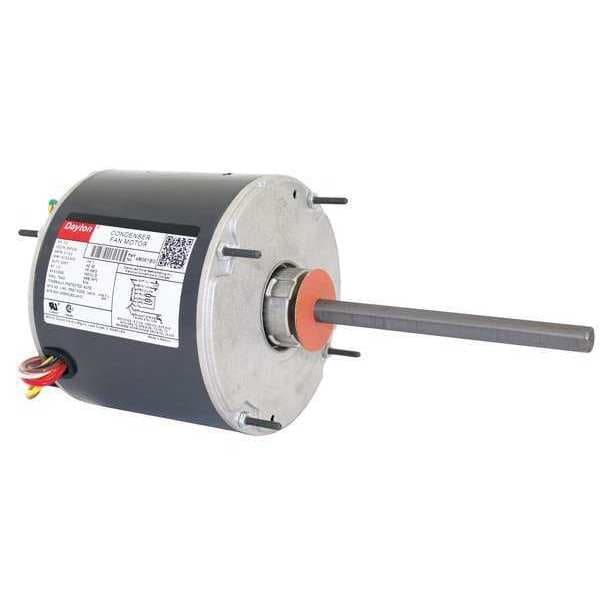

Condenser Fan Motor, 1/3 hp
Mfr # 4M061
Zoro # G1819316
product price: $224.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4M061
Zoro #
G1819316
UPC #
190735329795
Country of Origin
Multiple
Dimensions
Body Dia.
5 5/8 in
Lead Length
30 in
Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Overall Length
11 3/8 in
Length Less Shaft
5 3/8 in
Stud Size
8-32UNC-2A x 3/4 in
Shaft Length
6 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.1-2.3 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
