Shop DAYTON

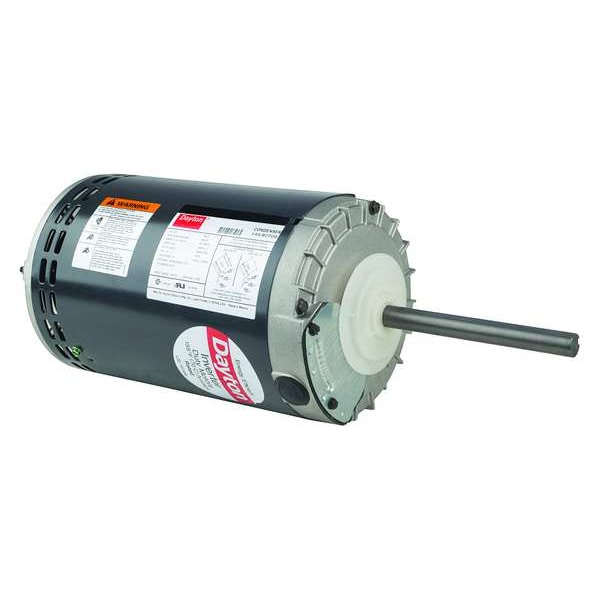

Condenser Fan Motor, 2 hp

  • Mfr # 24PR75

  • Zoro # G5358141

product price:  $636.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
24PR75
Zoro #
G5358141
UPC #
190735194300
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Overall Length
17 1/4 in
Body Dia.
6 1/2 in
Length Less Shaft
10 3/4 in
Lead Length
6 in
Frame Size
56YZ
Body Diameter
6.5 in
Shaft Diameter
5/8 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Service Factor
1
Application
Commercial Air Conditioners
Motor Bearings
Ball
Standards
CSA 258525, UL E47479
Nominal Efficiency
86 %
Motor Shaft Design
Flat
Hz
60 Hz
Full Load Amps
7.8-7.8/3.9 A
Duty
Continuous
Features
Inverter Duty Windings
Ins. Class
F
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Band
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Mounting Position
Vertical Shaft Up
Motor Enclosure Type
Open Air Over
Inverter Rating
Inverter Rated
Number of Speeds
1
Insulation Class
F
Product Type
Condenser Fan Motor
Bearing Type
Ball
Ambient Temperature - Maximum
70 Degrees C
Shaft Design
Flat
Frequency
60 Hz
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
7.8-7.8/3.9 A

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.8-7.8/3.9 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
