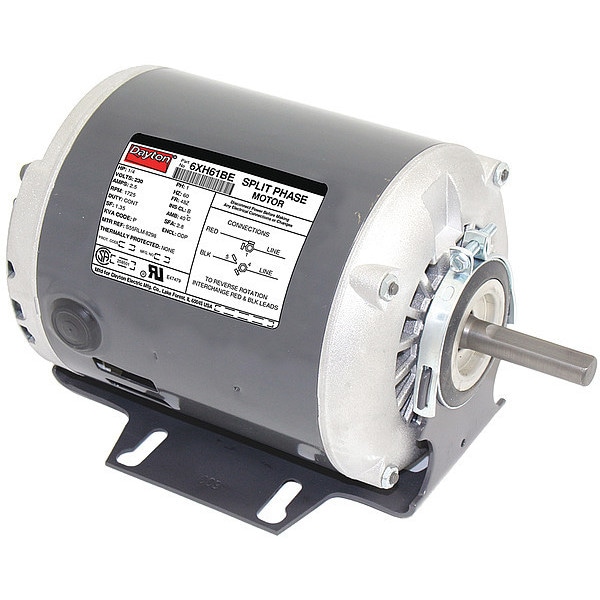

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48

DAYTON| Zoro #: G1456917| Mfr #: 6XH61

$101.25 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Motor Shaft Design: FlatNameplate RPM: 1725Nominal Efficiency: 93.5%
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1456917 Mfr #: 6XH61
Motor Shaft Design: FlatNameplate RPM: 1725
Nominal Efficiency: 93.5%Motor Application: General Application
Motor Bearings: BallIns. Class: B
Motor Thermal Protection: NoneHP: 1/4
Frame: 48ZFrame Material: Rolled steel
RPM Range: 1701-1800Voltage Compatibility:
Shaft Length: 1-7/8"RPM Group: 1701-1800
Item: General Purpose MotorLength Less Shaft: 7-15/16"
Standards: UL (E47479), CSA (156060)Motor Efficiency Group: Standard Efficient
No. of Speeds: 1Phase: 1
Voltage: 230Motor Design: Split-Phase
Full Load Amps: 2.5Motor Enclosure Design: Open Dripproof
Duty: ContinuousMotor Mounting Type: Cradle Base
Shaft Dia.: 1/2"Hz: 60
Manufacturers Warranty Length: 1 yr.Motor Service Factor: 1.35
Overall Length: 9-13/16"Motor Shaft Rotation: CW/CCW
Max. Ambient Temp.: 40 Degrees CCountry of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 1/4 HP, Nameplate RPM 1725, 48Z Frame, Voltage 230, 60 Hz, 1 Phase, 2.5 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.35 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 9-13/16 In., Motor Shaft Design Flat
