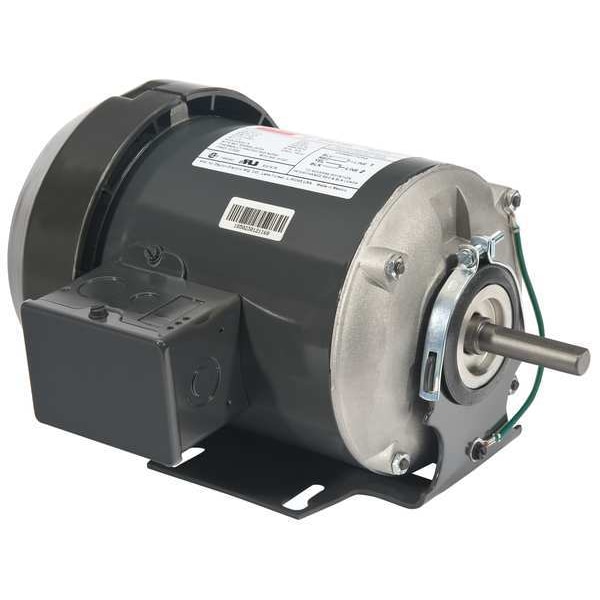

GP Mtr, Split Ph, TEFC, 1/3 HP, 1725 rpm, 48

DAYTON| Zoro #: G2362516| Mfr #: 6K572

$134.34 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2362516 Mfr #: 6K572
Phase: 1Motor Service Factor: 1.00
Hz: 60Motor Design: Split-Phase
Motor Enclosure Design: Totally Enclosed Fan-CooledShaft Length: 1-7/8"
Ins. Class: BMotor Bearings: Ball
Max. Ambient Temp.: 40 Degrees CMotor Shaft Rotation: CW/CCW
Motor Thermal Protection: NoneDuty: Continuous
Motor Mounting Type: Cradle BaseManufacturers Warranty Length: 1 yr.
Item: General Purpose MotorVoltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Frame Material: Rolled steelVoltage: 115
Motor Application: General ApplicationNameplate RPM: 1725
Motor Shaft Design: FlatIncludes: Conduit Box
RPM Group: 1701-1800HP: 1/3
No. of Speeds: 1Full Load Amps: 5.9
Length Less Shaft: 9-1/8"Shaft Dia.: 1/2"
Frame: 48ZStandards: UL (E47479), CSA (156060)
Overall Length: 11"Nominal Efficiency: 61.4%
Country of Origin (subject to change): Mexico

Product Description

General Purpose Motor, Split-Phase, Totally Enclosed Fan-Cooled, 1/3 HP, Nameplate RPM 1725, 48Z Frame, Voltage 115, 60 Hz, 1 Phase, 5.9 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.00 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11 In., Motor Shaft Design Flat
