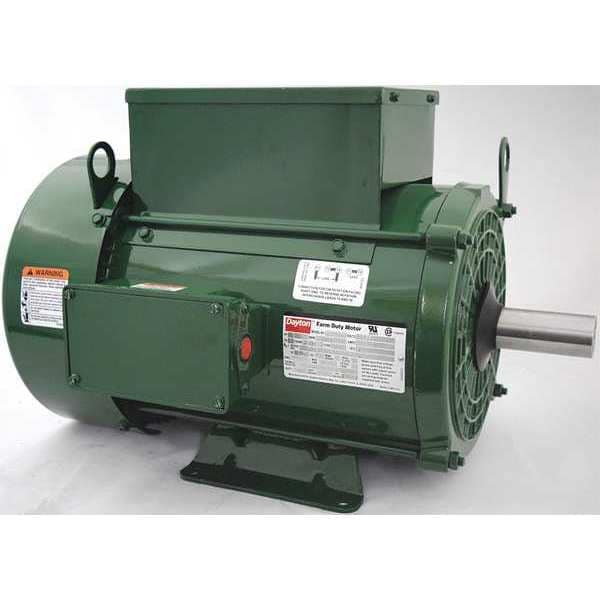

Dayton High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,730 Nameplate RPM, 213T Frame 6K130 - main

High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,730 Nameplate RPM, 213T Frame

  • Mfr # 6K130

  • Zoro # G1854487

product price:  $1,824.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K130
Zoro #
G1854487
UPC #
190735365472
Country of Origin
Mexico

Dimensions

Overall Length
19 9/16 in
Length Less Shaft
16 1/16 in
Shaft Length
3 1/2 in
Shaft Dia.
1 3/8 in

Details

Item
High Torque Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
Frame
213T
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,730
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
High Torque
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Ins. Class
F
Max. Ambient Temperature
40 Degrees C
Item - Farm Duty Motors
High Torque Farm Duty Motor
Frame Material
Rolled steel
Full Load Amps
23.0 A
Motor Bearings
Ball
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Nominal Efficiency
82.4 %
Finish
Green
Capacitor Required
Included
Duty
Continuous
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Hz
60 Hz
Duty Cycle
Continuous
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 23.0 A, 213T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
