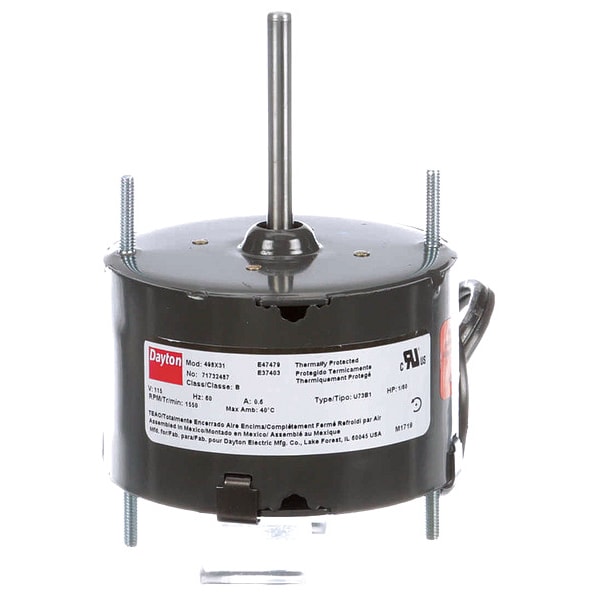

HVAC Motor, 1/70 HP, 1550 Nameplate RPM

  • Mfr # 71732487M

  • Zoro # G3791333

product price:
$
56.29
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/70
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71732487M
Zoro #
G3791333
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 1/8 in
Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Shaft Dia.
1/4 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Frame Size
3.3
Overall Length
4 3/8 in
Wire Rope Length
4 3/8 in
Length
4 3/8 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/70
RPM Range
1,501-1,600
Motor Shaft Rotation
CCWSE
Motor Mounting Type
Ring/Stud
Motor Shaft Design
Flat
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
1
Motor Bearings
Sleeve
Frame
3.3
Mounting Pattern
2-7/8
Full Load Amps
0.6 A
Mounting Stud Location
2/Both Ends
Max. Ambient Temp.
40 Degrees C
Phase
Single
Capacitor Required
Capacitor Not Required
Motor Service Factor
1
Application
HVAC/R
Stud/Base Mtg. Pattern
2-7/8 in
Plug Type
None
Ins. Class
B
Hz
60 Hz
Motor Application
HVAC/R
Motor Sub Application
Direct Drive Fan/Blower
Motor Design
Shaded Pole
Duty
Continuous
Item
HVAC Motor
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Recognized
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in
Usable @ 208V
Not Usable at 208V
Sub Application
General Purpose
Bearing Type
Sleeve
Full Load Current @ 60 Hz
0.60 A
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Frame Material
Steel
Wattage
11 W
Drive Type
Direct Drive
Shaft Design
Flat

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 11 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
