Shop All 3.3 Inch Diameter Motors
Dayton

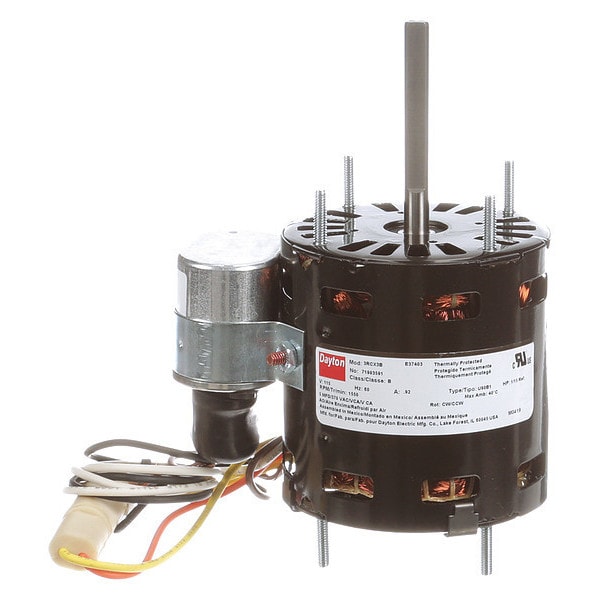

HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Open Air-Over
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Motor Shaft Rotation: CW/CCW
  • Motor Sub Application: Direct Drive Fan/Blower
See full product details
$77.74
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #71903591M Specifications

  • Voltage: 115V AC
  • Nameplate RPM: 1,550 RPM
  • Motor Enclosure Design: Open Air-Over
  • Number of Speeds: 1
  • HP: 1/15
  • RPM Range: 1,501-1,600
  • Motor Shaft Rotation: CW/CCW
  • Motor Sub Application: Direct Drive Fan/Blower
  • No. of Speeds: 1
  • Standards: CSA Certified (244617), UL Recognized (E37403)
  • Frame: 3.3
  • Motor Application: HVAC/R
  • Motor Shaft Design: Flat
  • Application: Replaces 1/15 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
  • Shaft Length: 2 1/2 in
  • Shaft Dia.: 5/16 in
  • Mounting Stud Location: 4/Both Ends
  • Motor Thermal Protection: Auto
  • Number of Shafts: 1
  • Includes: 5 MFD 370VAC Capacitor
  • Max. Ambient Temp.: 40 Degrees C
  • Body Dia.: 3 5/16 in
  • Item: HVAC Motor
  • Motor Bearings: Ball
  • Ins. Class: B
  • Length Less Shaft: 3 15/16 in
  • Capacitor Required: Included
  • Phase: Single
  • Motor Design: Permanent Split Capacitor
  • Hz: 60 Hz
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Cord Length: 20 in
  • Duty: Continuous
  • Stud/Base Mtg. Pattern: 2 in x 2 in
  • Mounting Pattern: 2 x 2
  • Full Load Amps: 1.00
  • Motor Service Factor: 1
  • Motor Mounting Type: Stud
  • Motor Mounting Position: All Angle
  • Usable @ 200V: No
  • Duty Cycle: Continuous
  • Usable @ 208V: No
  • Mounting Stud Pattern: 2 in x 2 in
  • Mounting: Stud
  • Country of Origin (subject to change): Mexico

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.00, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
