  9. Pump, SS, 1/2 HP, 115/230V, 11.2/5.6 Amps

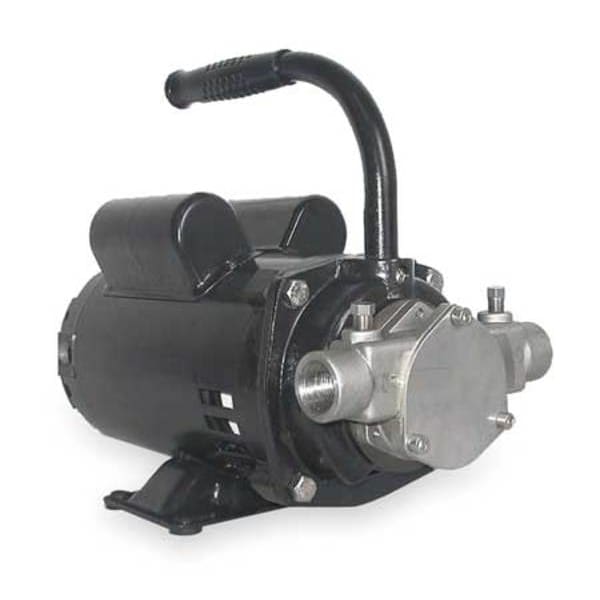

Dayton Pump, SS, 1/2 HP, 115/230V, 11.2/5.6 Amps 3ACC5 - main

Pump, SS, 1/2 HP, 115/230V, 11.2/5.6 Amps

  • Mfr # 3ACC5

  • Zoro # G3455216

product price: $2,249.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/230
Amps
11.2/5.6
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ACC5
Zoro #
G3455216
UPC #
190735279144
Country of Origin
China

Dimensions

Height (In.)
12 in
Width (In.)
6 45/64 in
Length (In.)
12 19/64 in
Overall Height
10.7 in
Overall Width
6.5 in
Overall Length
13.9 in
Discharge Connection Size
3/4 in
Media Intake Connection Size
3/4 in
Impeller Diameter
2 1/2 in
Shaft Outer Diameter
5/8 in
Inlet Internal Diameter
3/4 in
Discharge Internal Diameter
3/4 in

Details

Item
Utility Pump
HP
1/2 hp
Voltage
115/230
Amps
11.2/5.6
Motor Enclosure
Open Drip Proof
NEMA Motor Frame
56YZ
Inlet/Outlet (In.)
3/4 NPT
Max. Head (Ft.)
80 ft
Max. Pressure (PSI)
34.6 psi
Self-Priming
Yes
GPM of Water @ 40 Ft. of Head
8.6 gpm
Type
Flexible Impeller
Motor Type
Capacitor-Start/Run
Suction Lift (Ft.)
10
GPM of Water @ 30 Ft. of Head
9.6 gpm
GPM of Water @ 20 Ft. of Head
10.5 gpm
Seal
Nitrile Lip
GPM of Water @ 10 Ft. of Head
11.9 gpm
Max. Viscosity
5,000 SUS
Shaft Material
Stainless Steel
Prime in Feet
10 Feet and 15 Feet with Foot Valve and Pumps Flooded
Includes
Carrying Handle, Manual
Max. SSU @ 1725 RPM
5,000 SUS
Housing Material
Stainless Steel
Temp. Range (F)
0 to 180
GPM of Water @ 60 Ft. of Head
5.4 gpm
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
RPM
1,725 RPM
Impeller Material
Buna-N
Phase
Single
Wetted Material
Buna-N, Stainless Steel
Media Intake Connection Type
FNPT
Motor Mounting Type
Horizontal
Flow Rate @ 40 ft of Head - Maximum
8.6 gpm
Media Temperature - Maximum
185 Degrees F
Motor Speed - Maximum
1,725 RPM
Current
6.1 A
Viscosity - Maximum
5,000 SUS
Flow Rate @ 10 ft of Head - Maximum
11.9 gpm
Frequency
60 Hz
Nameplate Voltage
115/230V AC
Compatible Motor Frame
56YZ
Flow Rate @ 60 ft of Head - Maximum
5.4 gpm
Seal Material
Buna-N
Operating Pressure - Maximum
34.6 psi
Seal Type
Lip
Horsepower - Maximum
1/2 hp
Flow Rate @ 50 ft of Head - Maximum
6.5 gpm
Media Temperature - Minimum
0 Degrees F
Feet of Head - Maximum
80 ft
Suction Lift - Maximum
10 ft
Flow Rate @ 30 ft of Head - Maximum
9.6 gpm
Bearing Material
Stainless Steel
Flow Rate @ 1 ft of Head - Maximum
12.5 gpm
Bearing Type
Ball
For Media Type
Hydraulic Fluids, Petroleum Oils, Silicone Grease
Discharge Connection Type
FNPT
Flow Rate @ 20 ft of Head - Maximum
10.5 gpm
Priming
Self-Priming
Inlet Internal Standard
NPT
Discharge Internal Standard
NPT
Discharge Internal Gender
Female
Inlet Internal Gender
Female

Description

Utility Pump, Housing Material Stainless Steel, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 ft of Head - Maximum 11.9 gpm, Viscosity - Maximum 5,000 SUS, Feet of Head - Maximum 80 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Impeller Material Buna-N, Discharge Connection Type FNPT, Cord Length Not Applicable, Priming Self-Priming, Operating Pressure - Maximum 34.6 psi, Suction Lift - Maximum 10 ft
