Pump, Utility, 1/12hp

  • Mfr # 3YU61

  • Zoro # G2260334


product price: $222.99
/ea
Free Shipping & Returns

Key Features

HP
1/12 hp
Voltage
115
Amps
2.0 A
Motor Enclosure
Open Drip Proof
Duty
Intermittent
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YU61
Zoro #
G2260334
UPC #
190735296455
Country of Origin
China

Dimensions

Max. Dia. Solids
Clear water Only
Height
4 in
Length
30 1/2 in
Width
5 in
Manufacturers Warranty Length
1 yr
Cord Length
10 ft
Overall Height
3.8 in
Overall Width
4.3 in
Overall Length
6.5 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
3/4 in
Impeller Diameter
1 3/8 in
Discharge Connection Size
3/4 in
Media Intake Connection Size
3/4 in
Shaft Outer Diameter
3/8 in
Discharge External Diameter
3/4 in
Inlet External Diameter
3/4 in

Details

Item
Utility Pump
HP
1/12 hp
Voltage
115
Amps
2.0 A
Motor Enclosure
Open Drip Proof
Duty
Intermittent
GPM of Water @ 5 Ft. of Head
5.5
Impeller Type
Flex-Vane
Wetted Materials
Buna N, Rubber, Thermoplastic
Outlet
3/4 in GHT
Max. Head
43 ft
Housing Material
Plastic
Motor Type
Brushed
Max. Specific Gravity
1.0
Includes

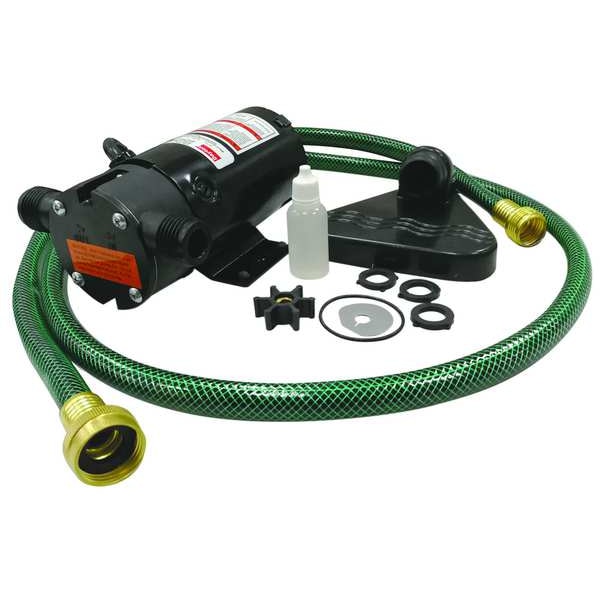

6 ft Length of Garden Hose, Cam Ring and ORing, Extra Impeller, Ports with 3/4 in OD Fittings, Suction Strainer
Max. Liquid Temp.
77 Degrees F
Impeller Material
Buna-N
GPM of Water @ 40 Ft. of Head
1
GPM of Water @ 20 Ft. of Head
4
Phase
Single
Max. Pressure
18.6 psi
Suction Lift
6 ft
Inlet
3/4 in GHT
Hz
60
Seal Material
Buna-N
GPM of Water @ 30 Ft. of Head
2.4
Agency Compliance
UL Listed
Bearing Type
Ball
Max. Case Pressure
18.6 psi
GPM of Water @ 10 Ft. of Head
5.0
Application
To Quickly Empty Waterbeds, Aquariums, Pool Covers and Clogged Sinks
Shaft Material
Stainless Steel
Standards
UL Listed
Flow Rate @ 10 ft of Head (Maximum)
5 gpm
Nameplate Voltage
115V AC
Best Efficiency Head
20 ft
Flow Rate @ 5 ft of Head (Maximum)
5.5 gpm
For Use With Potable Systems
No
Flow Rate @ 15 ft of Head (Maximum)
4.5 gpm
Pump Housing Material
Plastic
Flow Rate @ 40 ft of Head (Maximum)
1 gpm
Flow Rate @ 30 ft of Head (Maximum)
2.4 gpm
Horsepower
1/12 hp
Frequency
60 Hz
Intake Type
GHT
Specific Gravity (Maximum)
1
Wetted Material
Buna-N, Polypropylene, Rubber
Suction Lift (Maximum)
6 ft
Shut Off Pressure (Maximum)
18.6 psi
Duty Cycle
Intermittent
Impeller Design
Flex-Vane
Flow Rate @ 20 ft of Head (Maximum)
4 gpm
Best Efficiency Flow
4.0 gpm
Maximum Media Temperature
77 Degrees F
Maximum Feet of Head
43 ft
Seal Type
Lip
Discharge Connection Type
Hose
Priming
Self-Priming
Current
2 A
Flow Rate @ 30 ft of Head - Maximum
2.4 gpm
Suction Lift - Maximum
6 ft
Media Intake Connection Type
MGHT
Flow Rate @ 1 ft of Head - Maximum
5.8 gpm
Media Temperature - Maximum
77 Degrees F
Flow Rate @ 20 ft of Head - Maximum
4 gpm
Bearing Material
Stainless Steel
For Media Type
Water
Horsepower - Maximum
1/12 hp
Feet of Head - Maximum
43 ft
Flow Rate @ 10 ft of Head - Maximum
5 gpm
Motor Speed - Maximum
5,000 RPM
Operating Pressure - Maximum
18.6 psi
Motor Mounting Type
Horizontal
Flow Rate @ 40 ft of Head - Maximum
1 gpm
Media Temperature - Minimum
32 Degrees F
Volute Material
Plastic
Discharge External Gender
Male
Inlet External Gender
Male
Inlet External Standard
Garden Hose Thread
Discharge External Standard
Garden Hose Thread

Description

Utility Pump, Housing Material Plastic, Horsepower - Maximum 1/12 hp, Nameplate Voltage 115V AC, Flow Rate @ 10 ft of Head - Maximum 5 gpm, Viscosity - Maximum Not Applicable, Feet of Head - Maximum 43 ft, Discharge Connection Size 3/4 in, Media Intake Connection Size 3/4 in, Media Intake Connection Type MGHT, Impeller Material Buna-N, Discharge Connection Type Hose, Cord Length 10 ft, Priming Self-Priming, Operating Pressure - Maximum 18.6 psi, Suction Lift - Maximum 6 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
