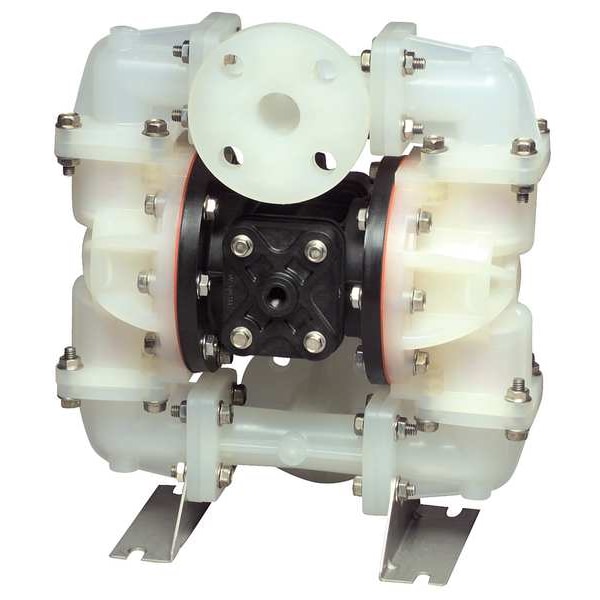

Double Diaphragm Pump, PVDF, Air Operated, PTFE, 23 gpm GPM 220 Degrees F

  • Mfr # S10B1K2KPAS000.

  • Zoro # G5386963

product price:
$
2,970.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
PVDF
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S10B1K2KPAS000.
Zoro #
G5386963
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
13.8 in
Overall Width
11.8 in
Overall Length
7.6 in
Solid Diameter (Maximum)
0.15 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in
Wire Rope Length
7.6 in
Length
7.6 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
PVDF
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
Flange
Check Seat Material
PVDF
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Agency Compliance
CE, EAC
Self-Priming Dry
9 ft
Self-Priming Wet
9 ft
Inlet/Outlet
1 in
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
For Use With
Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
Wetted Housing Material
PVDF
Series Family
S10
Media Discharge Location
Top
Flow Rate @ 20 psi
11.5 gpm
Manifold Connection Type
Flange
Media Intake Location
Bottom
Flow Rate (Maximum)
23 gpm
Media Discharge Connection Type
Flange
Flow Rate @ 40 psi
16.3 gpm
Flow Rate @ 100 psi
23 gpm
Flow Rate @ 60 psi
19.5 gpm
Chemical Compatibility
Air Intake Pressure (Maximum)
100 psi
Priming
Self-Priming
Feet of Head (Maximum)
231 ft
For Use With Potable Systems
No
Flow Rate @ 80 psi
21.6 gpm
Media Intake Connection Type
Flange
Displacement Per Stroke
0.026 gal
Manifold Connection Standard
Flange
Manifold Port Connection Type
Single Port
Media Intake Port Configuration
Center Horizontal
Material Conductivity
Non-Conductive
Media Discharge Port Configuration
Center Horizontal
Mounting Hardware Material
Stainless Steel
Wetted Body Material
PVDF
Diaphragm Base Material
PTFE
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Not Reinforced
Fluid Chamber Assembly Type
Bolted
Center Section Material
Polypropylene
Diaphragm Backing Material
Santoprene
Includes Clean In Place Technology
No Clean In Place Included
Series
S10

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type Flange, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 23 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type Flange, Media Intake Location Bottom, Center
