Pump, Utility, 1/12hp

DAYTON |Zoro #: G2260334|Mfr #: 3YU61

$113.96 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2260334 Mfr #: 3YU61
Item: Utility PumpDuty: Intermittent
Amps: 2.0Hz: 60
Wetted Materials: Thermoplastic, Rubber, Buna NImpeller Material: Rubber
Housing Material: PlasticSeal Material: Buna N

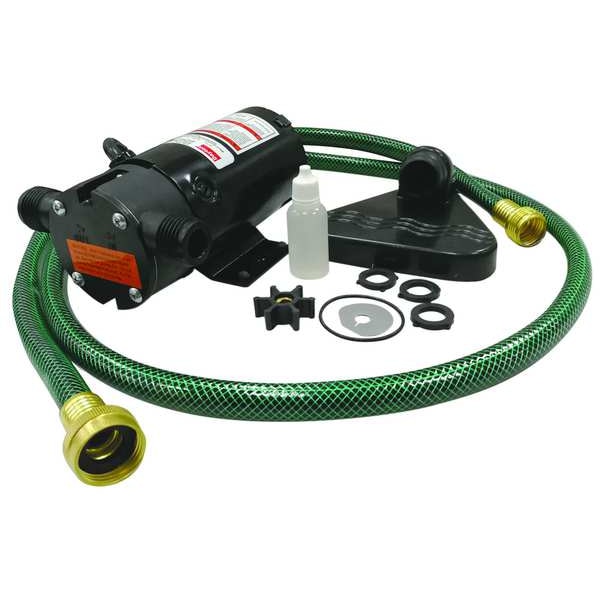

Includes: Ports with 3/4" OD Fittings, Corrosion-resistant Pump, 6 Feet Length of Garden Hose, Suction Strainer, Extra Impeller, Cam Ring and O-ringMax. Specific Gravity: 1.0
Impeller Type: Flex-VaneBearing Type: Ball
Agency Compliance: UL ListedManufacturers Warranty Length: 1 yr.
Item: Utility PumpHP: 1/12
Voltage: 115Motor Enclosure: ODP
Motor Type: AC/DC BrushGPM of Water @ 5 Ft. of Head: 5.5
GPM of Water @ 10 Ft. of Head: 5.0GPM of Water @ 20 Ft. of Head: 4
GPM of Water @ 30 Ft. of Head: 2.4GPM of Water @ 40 Ft. of Head: 1
Phase: 1GPM of Water @ 15 Ft. of Head: -
Length: 61/2"Port Rotation: -
Height: 4"GPH of Water @ 5 PSI: -
GPM of Water @ 90 Ft. of Head: -Max. Case Pressure: 18.6 psi
GPH of Water @ 35 PSI: -GPM of Water @ 80 Ft. of Head: -
Max. Head: 43 ft.GPH of Water @ 40 PSI: -
GPH of Water @ 30 PSI: -GPM of Water @ 70 Ft. of Head: -
Suction Lift: 6 ft.GPH of Water @ 25 PSI: -
GPM of Water @ 60 Ft. of Head: -Max. Liquid Temp.: 77 Degrees F
GPH of Water @ 15 PSI: -GPM of Water @ 50 Ft. of Head: -
Max. Dia. Solids: Clear water OnlyGPH of Water @ 10 PSI: -
GPM of Water @ 1 Ft. of Head: -Outlet: 3/4" GHT
GPH of Water @ 20 PSI: -GPM of Water @ 35 Ft. of Head: -
Max. Pressure: 18.6 psiInlet: 3/4" GHT
Width: 5"GPM of Water @ 25 Ft. of Head: -
Country of Origin (subject to change): China

Product Description

Utility Pump, 1/12 HP, 1 Phase, Voltage 115, 2.0 Amps, 60 Hz, Inlet 3/4 In. GHT, Outlet 3/4 In. GHT, Motor Enclosure ODP, Motor Type AC/DC Brush, Wetted Materials Thermoplastic, Rubber, Buna N, Impeller Material Rubber, Housing Material Plastic, Seal Material Buna N, Max. Liquid Temp. 77 Degrees F, Suction Lift 6 ft., Max. Head 43 ft., Max. Pressure 18.6 psi, Max. Specific Gravity 1.0, Max. Case Pressure 18.6 psi, Impeller Type Flex-Vane, Bearing Type Ball, Duty Intermittent
