Shop All Rotary Pumps
Dayton

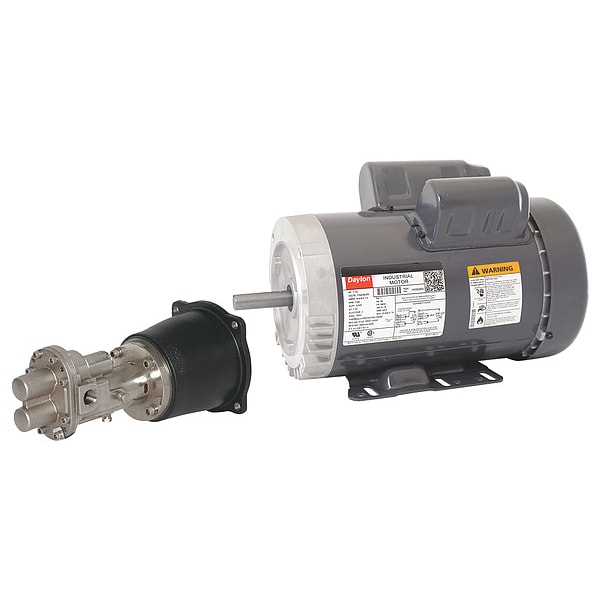

Rotary Pump, 125psi, 12.3Lift, 1-1/2HP

product price: $1,504.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Type Close Coupled
  • HP 1 1/2 hp
  • Voltage 115/230
  • Relief Valve No
  • Body Material 316 Stainless Steel
See all product information

Product Information

  • Brand Dayton
  • MFR # 41TK12
  • Zoro # G2576959
  • UPC #
    00194484255565
  • Country of Origin Multiple
  • Category Rotary Pumps

Dimensions

Port Size (In.) 1/2 in
Length (In.) 22.5 in
Width (In.) 11 in
Height (In.) 8.25 in
Overall Height 8.3 in
Overall Width 11 in
Overall Length 22.5 in
Manufacturer Warranty Length 1 yr
Media Intake Connection Size 1/2 in

Details

Item Rotary Gear Pump
Pump Type Close Coupled
HP 1 1/2 hp
Voltage 115/230
Relief Valve No
Body Material 316 Stainless Steel
Gear Material Fortron PPS
GPM @ 20 PSI 10.2 gpm
GPM Max. 10.8 gpm
GPM @ 60 PSI 9.1 gpm
Max. Pressure (PSI) 125 psi
GPM @ Freeflow 10.8 gpm
Shaft Material 316 Stainless Steel
GPM @ 100 PSI 10.2 gpm
Max. Temp. (F) 280 Degrees F
Bushing Carbon Graphite
Motor Frame 56HC
Phase Single
Amps AC 14.4/7.2
Max. RPM 1,725 RPM
O-Ring Viton
Amps 14.4/7.2
Motor Enclosure Totally Enclosed Fan Cooled
Suction Lift (Ft.) 12.3 ft
Seal Type 21 Mechanical With Stainless Steel, Viton
Temp. Range 32 Degrees to 280 Degrees F
Max. Viscosity (SSU) 500 SUS
GPM @ 40 PSI 9.5 gpm
Includes 1K082, 4KHN8
Assembled/Unassembled Unassembled
Motor Included 1K082
Pump Head Included 4KHN8
O-Ring Material Viton
Seal Material Viton
Motor Mounting Type Close Coupled
Horsepower - Maximum 1 1/2 hp
Operating Pressure - Maximum 125 psi
Nameplate Voltage 115/230V AC
Gear Design Spur
Bushing Material Carbon Graphite
Suction Lift -Maximum 12.3 ft
Flow Rate @ 100 psi 10.2 gpm
Flow Rate @ 40 psi 9.5 gpm
Flow Rate - Maximum 10.8 gpm
Flow Rate @ 20 psi 10.2 gpm
Operating Temperature - Maximum 280 Degrees F
Seal Type Mechanical
Flow Rate @ 60 psi 9.1 gpm
Motor Speed - Maximum 1,725 RPM
Operating Temperature - Minimum 32 Degrees F
Compatible Motor Frame 56HC
Viscosity - Maximum 500 SUS

Description

Rotary Gear Pump, Operating Pressure - Maximum 125 psi, Viscosity - Maximum 500 SUS, Phase Single, Nameplate Voltage 115/230V AC, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower - Maximum 1 1/2 hp, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 280 Degrees F, Media Intake Connection Size 1/2 in, Gear Design Spur, Gear Material Fortron PPS, Suction Lift -Maximum 12.3 ft, Flow Rate - Maximum 10.8 gpm, Seal Type Mechanical, Seal Material Viton
