Split-Phase Belt Drive Motor, 1/3 HP, 48Y Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

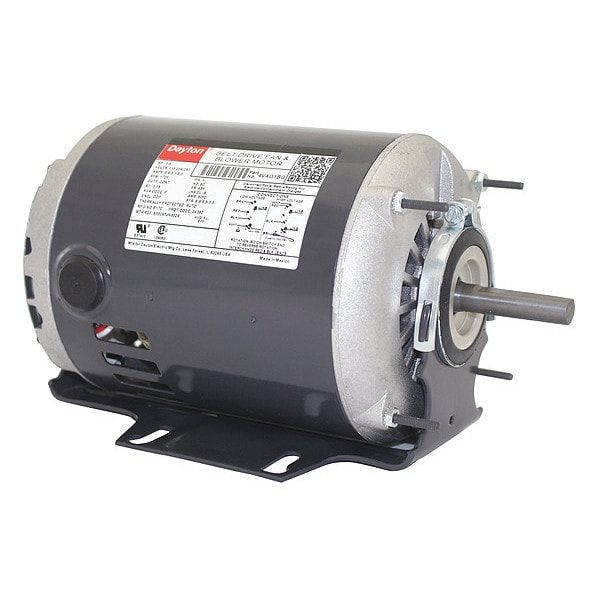

Dayton Split-Phase Belt Drive Motor,  1/3 HP,  48Y Frame,  115/208-230V AC Voltage,  1,725 Nameplate RPM 4VAG1BG
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$180.07
  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $180.07

Dayton #4VAG1BG Specifications

  • Item: Belt Drive Motor
  • Motor Design: Split-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1/3
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 48Y
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Standards: CSA Certified (258501), UL Recognized (E37403)
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • Motor Bearings: Ball
  • Ins. Class: B
  • Overall Length: 10 7/32 in
  • Footnotes: Usable On 208V At 1.0 Service Factor
  • Duty: Continuous
  • Motor Shaft Rotation: CW/CCW
  • Motor Mounting Position: All Angle
  • Resilient Ring Dia.: 2 1/4 in
  • Body Dia.: 5 5/8 in
  • Motor Shaft Design: Flat
  • Frame Material: Steel
  • Max. Ambient Temp.: 60 Degrees C
  • Ring to Ring Center: 8 1/16 in
  • Hz: 60
  • Motor Frame Material: Rolled Steel
  • Nominal Efficiency: 57.3 %
  • Length Less Shaft: 8 7/16 in
  • Shaft Length: 1 7/8 in
  • Full Load Amps: 6.6/3.1-3.3
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 6.6/3.1-3.3 Full Load Amps, 48Y Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
