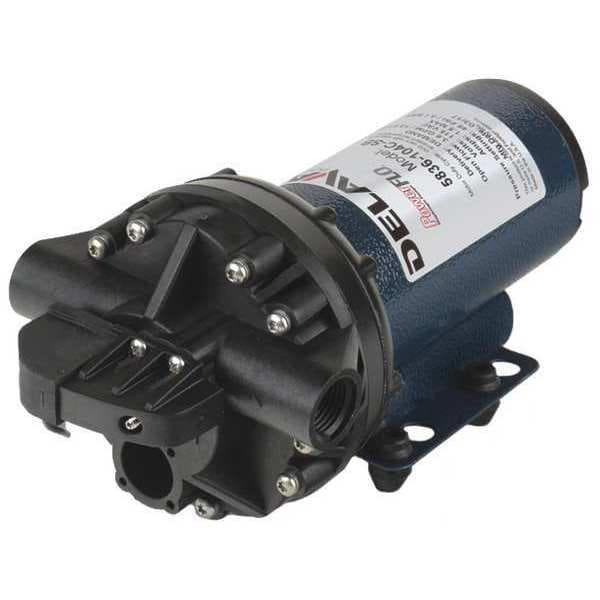

Diaphragm Pump, Polypropylene, Santoprene, 115, 3.6 GPM 140 Degrees F

  • Mfr # 5836-104C-SB

  • Zoro # G1593188

product price:  $200.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5836-104C-SB
Zoro #
G1593188
UPC #
830344009205
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5 in
Overall Height
4.6 in
Overall Length
9.1 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
8 mm
Inlet Diameter
1/2 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Motor Type
Totally enclosed Nonventilated
Pressure Off
100 psi
Inlet/Outlet
1/2 FNPT
Features
3-Pin Wall Plug
Pressure Switch
Yes
Diaphragm Design
Five Chamber
Type
Diaphragm
Fuse Amps
1.5 A
Prime in Feet
8
Pressure On
20 psi
Agency Compliance
CE/NSF
Pump Operation Type
Electric
Standards
NSF Certified
Motor Enclosure
Totally Enclosed Non-Ventilated
Nameplate Voltage
120V AC
Flow Rate @ 20 psi
3 gpm
Current
1.5 A
Diaphragm Chamber Design
5
Flow Rate (Maximum)
3.6 gpm
Flow Rate @ 40 psi
2.4 gpm
Flow Rate @ 0 psi
3.8 gpm
Priming
Self-Priming
Series
5800
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Check Valve Material
FKM
Discharge Connection Type
FNPT
Intake Connection Type
FNPT
Housing Material
Polypropylene
Chemical Compatibility
Fertilizer, Herbicide
Fluid Head Material
Polypropylene
Includes Gearbox
No Gearbox Included
Pump Drive Configuration
Electric Motor Unit
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Self-Priming Lift - Maximum
12 ft
Pump Control Type
Demand
Pump Technology
Diaphragm
Full Load Current
22.5
Includes Heat Sink
No Heat Sink Included
Motor Speed - Maximum
2,200 RPM
Media Temperature - Maximum
140 Degrees F
Feet of Head (Maximum)
103.8 ft
Number of Diaphragms
1
Frequency
60 Hz
Includes Regulator
No Regulator Included
Electrical Connection Type
Power Cord with Plug
Power Source
Electric
Pressure Switch On Pressure
35 psi
Phase
Single
Gasket Material
FKM
Pressure Switch Off Pressure
45 psi
Discharge Pressure - Maximum
45 psi

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 3.6 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 120V AC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 103.8 ft
