  9. Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene
Shop All Diaphragm Pumps
Sandpiper

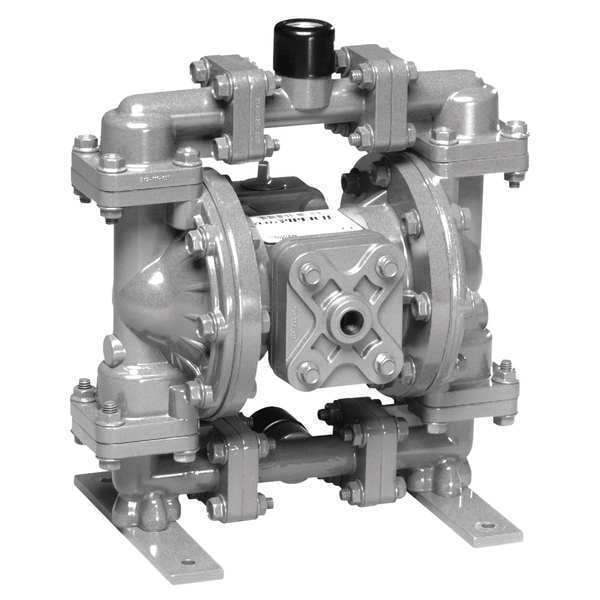

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene

product price: $2,058.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Stainless Steel
  • Diaphragm Material - Pumps Santoprene(R)
  • Max. Flow 15 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 275 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Max. Dia. Solids 1/8 in
Height 10 3/8 in
Width 10 1/4 in
Manufacturers Warranty Length 1 yr
Length 7 1/16 in
Overall Length 7.2 in
Overall Width 10.3 in
Overall Height 10.5 in
Media Discharge Connection Size 1/2 in
Air Intake Connection Size 1/4 in
Solid Diameter (Maximum) 0.13 in
Media Intake Connection Size 1/2 in

Details

Housing Material - Pumps Stainless Steel
Diaphragm Material - Pumps Santoprene(R)
Max. Flow 15 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 275 Degrees F
Connection Style NPT
Agency Compliance ATEX, CE, EAC
Manifold Connection Single Port
Ball Material Santoprene(R)
Diaphragm Material Santoprene
Item Double Diaphragm Pump
Max. Operating Pressure 100 psi
Check Seat Material Polyethylene
Self-Priming Dry 13 ft
Self-Priming Wet 13 ft
Valve Type Ball
Max. Flow GPM 15 gpm
Body Material Stainless steel
Operation Type Air Operated
Max. Temp. 275 Degrees F
Standards ABS Type Approved, CE Certified, EAC, ISO
Non-Wetted Housing Material Aluminum
Media Temperature (Maximum) 275 Degrees F
Flow Rate (Maximum) 15 gpm
Air Consumption (Maximum) 20 scfm
Operating Pressure (Maximum) 100 psi
Wetted Housing Material 316 Stainless Steel
Priming Self-Priming
Air Intake Connection Type NPT
For Use With Potable Systems No
Chemical Compatibility Alcohol, Ammonium Hydroxide, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water
Flow Rate @ 20 psi 4.2 gpm
Flow Rate @ 40 psi 9.3 gpm
Flow Rate @ 80 psi 12.8 gpm
Pump Assembly Type Bolt
Media Discharge Connection Type NPT
Flow Rate @ 100 psi 13.4 gpm
Media Discharge Location Center, Top
Flow Rate @ 60 psi 11.5 gpm
Media Intake Connection Type NPT
Media Intake Location Bottom, Center
Air Intake Pressure (Maximum) 125 psi
Feet of Head (Maximum) 289 ft
Manifold Connection Type NPT
Valve Material Santoprene

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polyethylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 15 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT
