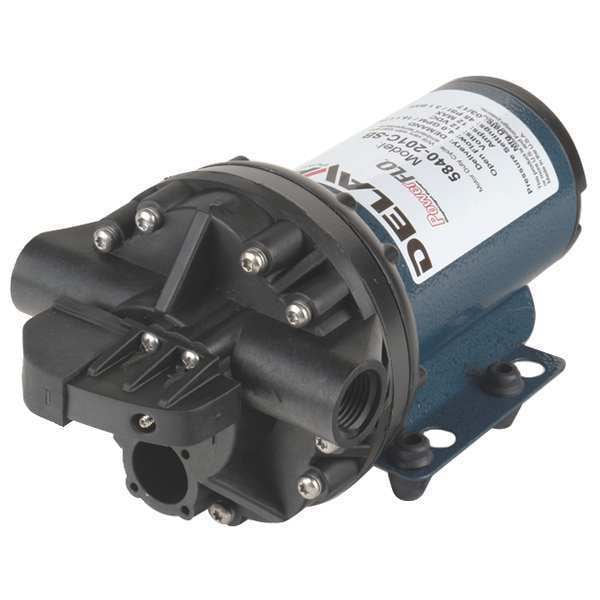

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 4.0 GPM

  • Mfr # 5840-201C-SB

  • Zoro # G1593763

product price:
$
152.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5840-201C-SB
Zoro #
G1593763
UPC #
830344008550
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Width
5 in
Overall Height
4.6 in
Overall Length
9.1 in
Media Intake Connection Size
1/2 in
Media Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in
Shaft Outer Diameter
8 mm
Wire Rope Length
9.1 in
Length
9.1 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Inlet/Outlet
1/2 FNPT
Agency Compliance
CE/NSF
Diaphragm Design
Five Chamber
Fuse Amps
12 A
Pressure Switch
Yes
Prime in Feet
8
Type
Diaphragm
Pressure Off
100 psi
Pressure On
20 psi
Motor Type
Totally enclosed Nonventilated
Standards
NSF Certified
Pump Operation Type
Electric
Diaphragm Chamber Design
5
Current
12 A
Priming
Self-Priming
Flow Rate @ 20 psi
3.4 gpm
Flow Rate @ 40 psi
2.4 gpm
Nameplate Voltage
12V DC
Flow Rate @ 0 psi
4.2 gpm
Series
5800
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate (Maximum)
4 gpm
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Check Valve Material
FKM
Housing Material
Polypropylene
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Gasket Material
FKM
Discharge Pressure - Maximum
45 psi
Pressure Switch Off Pressure
45 psi
Power Source
Electric
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pressure Switch On Pressure
35 psi
Electrical Connection Type
Power Cord with Plug
Phase
Single
Full Load Current
22.5
Chemical Compatibility
Fertilizer, Herbicide
Includes Gearbox
No Gearbox Included
Pump Drive Configuration
Electric Motor Unit
Media Temperature - Maximum
140 Degrees F
Motor Speed - Maximum
2,200 RPM
Includes Heat Sink
No Heat Sink Included
Number of Diaphragms
1
Self-Priming Lift - Maximum
12 ft
Pump Technology
Diaphragm
Includes Regulator
No Regulator Included
Pump Control Type
Demand
Feet of Head (Maximum)
103.8 ft
Fluid Head Material
Polypropylene
Power Source - TS Only
Electric
Power Source - old
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 4 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 103.8 ft
